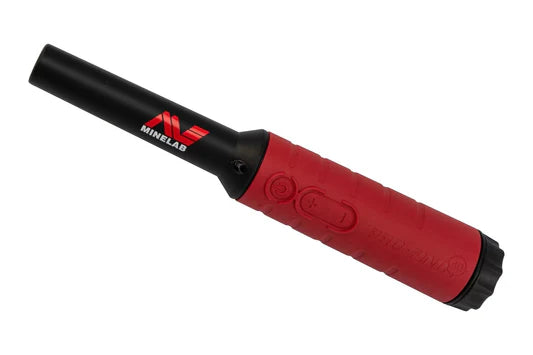

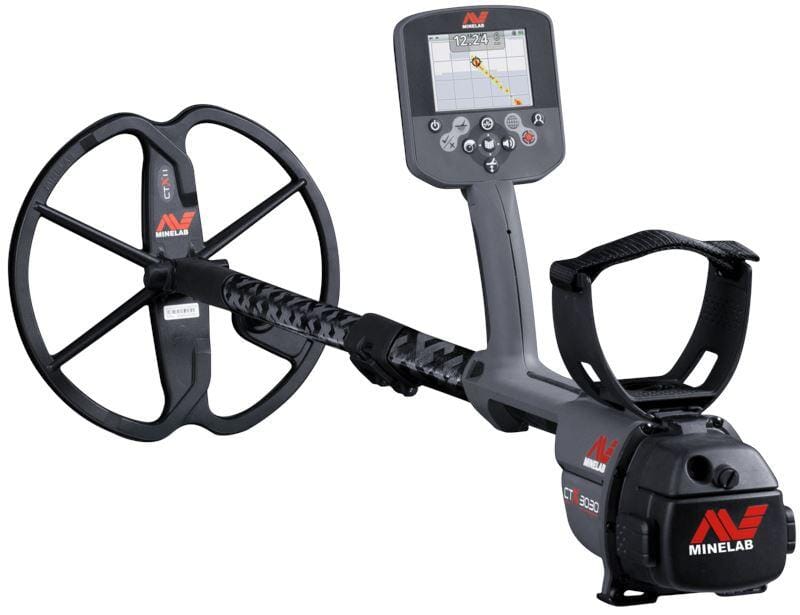

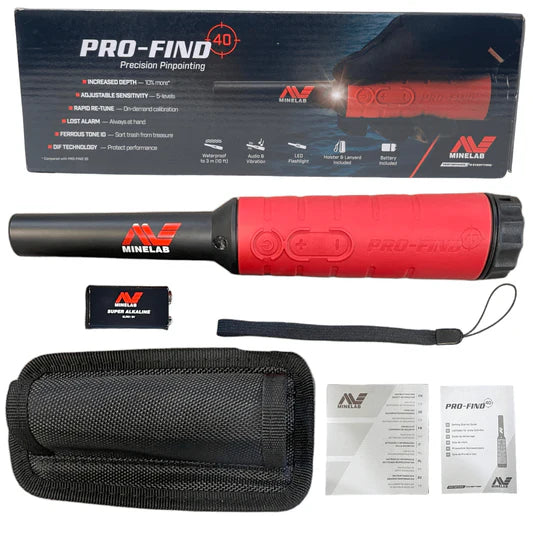

Minelab CTX 3030 Waterproof Metal Detector with Pro-Find 40 and Extra 6" Coil, High Plains Gear

Waterproof: You can go detecting anywhere with this versatile treasure detector. You have the flexibility of land and underwater detecting as the CTX 3030 is waterproof* to 10 ft (3 m)

Wireless audio: Have the freedom to detect without your headphones being attached to your detector. With the WM 10 wireless module you have the choice of using the built-in speaker, supplied headphones or your own favorite headphones

Ultimate FeCo discrimination: with ferrous (Fe) and conductivity (Co) target resolution, plus adjustable tone ID profiles, you can detect (accept) the targets you want to and ignore (reject) the rest. With target trace and target separation, you can identify multiple targets simultaneously for accurate detecting results

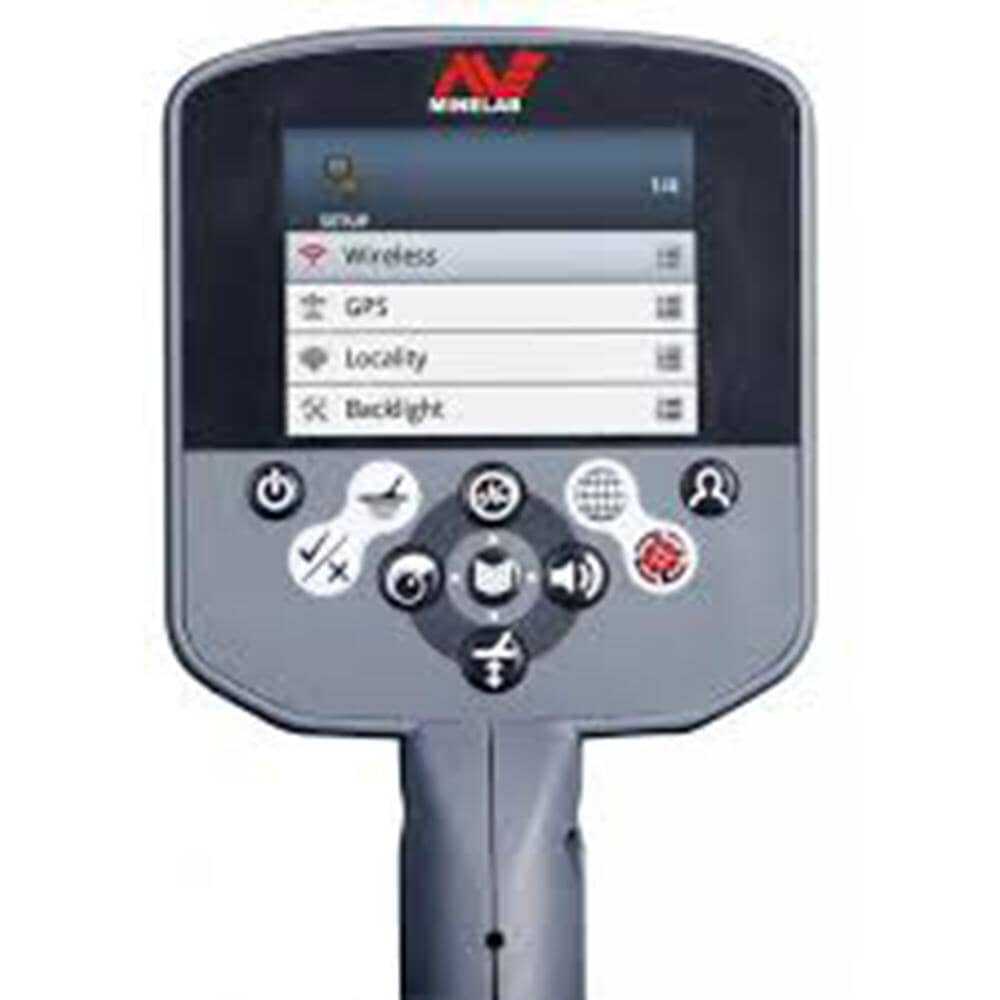

Full color display: The full color LCD clearly displays more target information than ever before and greatly enhances the CTX 3030’s discrimination capabilities

GPS locating: See where you have been, and where you are going, by using the map screen and navigation tool

GeoTrails show the ground that you have already covered

WayPoints mark points of interest

FindPoints mark your treasure locations

GeoHunts record your entire detecting adventure

PC mapping (with Google Maps): Upload all of your detector settings and treasure locations to your PC using the XChange 2 application. Attach photos and text to your finds, group them into categories. View the locations on Google Maps. You can also download data to your detector for re-exploring favorite areas

Quick menus (and smart functions): Quick menus give you easy access to ‘on the go’ adjustments. Smart functions (sensitivity,noise cancel, audio, ground balance) and a customizable user button allow fast changes to your most used controls while detecting

Ergonomic design: The well balanced design has all the battery weight behind the armrest for comfortable detecting. The detector is fully adjustable to suit your needs

Multi-languages: You can choose from 9 different languages: English, French, German, Italian, Polish, Portuguese, Russian, Spanish or Turkish

Key technologies:

FBS 2 uses multiple frequency transmission and coil-to-detector data communication to find more targets in variable ground conditions

Smartfind 2 provides digital signal processing and precision FeCo discrimination, with color target information, for the best target identification results

GPSi has very high sensitivity for accurate recording of geo locations

Wi-Stream creates very fast wireless audio with no loss of sound quality

Application: Coin, Relic, Jewellery & Beach (waterproof 10ft)

Technology: FBS 2, Smartfind 2, GPSi, Wi-Stream

Frequency/Transmission: Multiple frequencies: 1.5 - 100kHz

Coil (standard): 11-inch waterproof Double-D smart coil

Audio Output: Built-in speaker, standard ¼-inch non-waterproof socket, custom waterproof socket (Minelab accessory headphones only)

Headphones Supplied: KOSS UR30 (100 ohm) supplied with detector (non-waterproof )

Visual Display: Full colour LCD with backlight and adjustable brightness (1–10)

Backlight: Yes

Product ID: 88961

USB Connectivity: XChange 2 (via USB) compatible with Windows XP, Vista and 7

Memory: Settings saved automatically while detecting and remain until changed or reset

Depth Indication: Accurate gauge active in normal detecting and Pinpoint mode

Detect Modes: 10 fully customizable, including 5 preset (Coins, Beach, Relic, Silver & High Trash)

Discrimination: Smartfind 2TM 2 dimensional colour discrimination: Ferrous 35, Conductivity 50 - 20 fully customizable discrimination patterns (2 per Search Mode)

Audio tone: Customisable Tone ID Profiles - 1, 2 ferrous (Fe), 2 conductive (Co), 4 Fe, 4 Co, 35 Fe, 50 Co or Combined

Audio Type: Normal, Long, Smooth & Pitch Hold

Ground Balance: Auto Compensation and Auto Ground Balance

Ground Balance Type:

Trash Density:

Pinpoint: Non-motion with modulated audio and visual crosshair on LCD, 2 modes: normal and sizing

Sensitivity Adjust: Auto and Manual (1–30)

Tune / Noise Cancel: Manual & Automatic (11 channels)

Threshold: Level adjustment (1–50), Pitch adjustment (1–30)

Target Volume Adjust: Limit & Gain (1 to 30)

Battery: Li-ion pack with fast charger. 12 V car adapter supplied with Standard Pack only

Low battery alert: Audio & visual indication.

Length: Min 37 in. (940 mm) – Max 55.3 in. (1405 mm)

Weight: 5.20 lbs (2.36 kgs) including Li-ion battery pack

Warranty: 3 years control box & coil

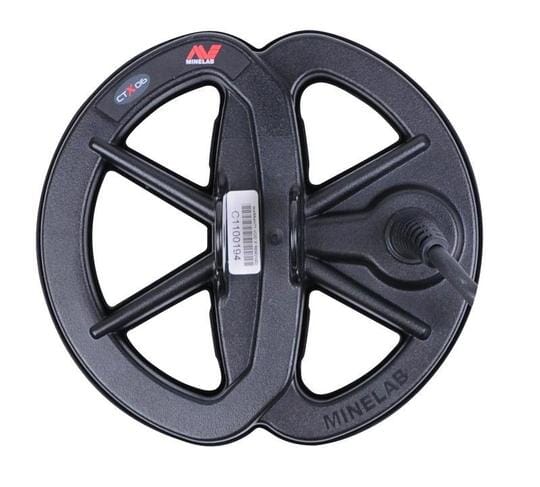

Minelab CTX 06 - 6" DD Smart Coil
