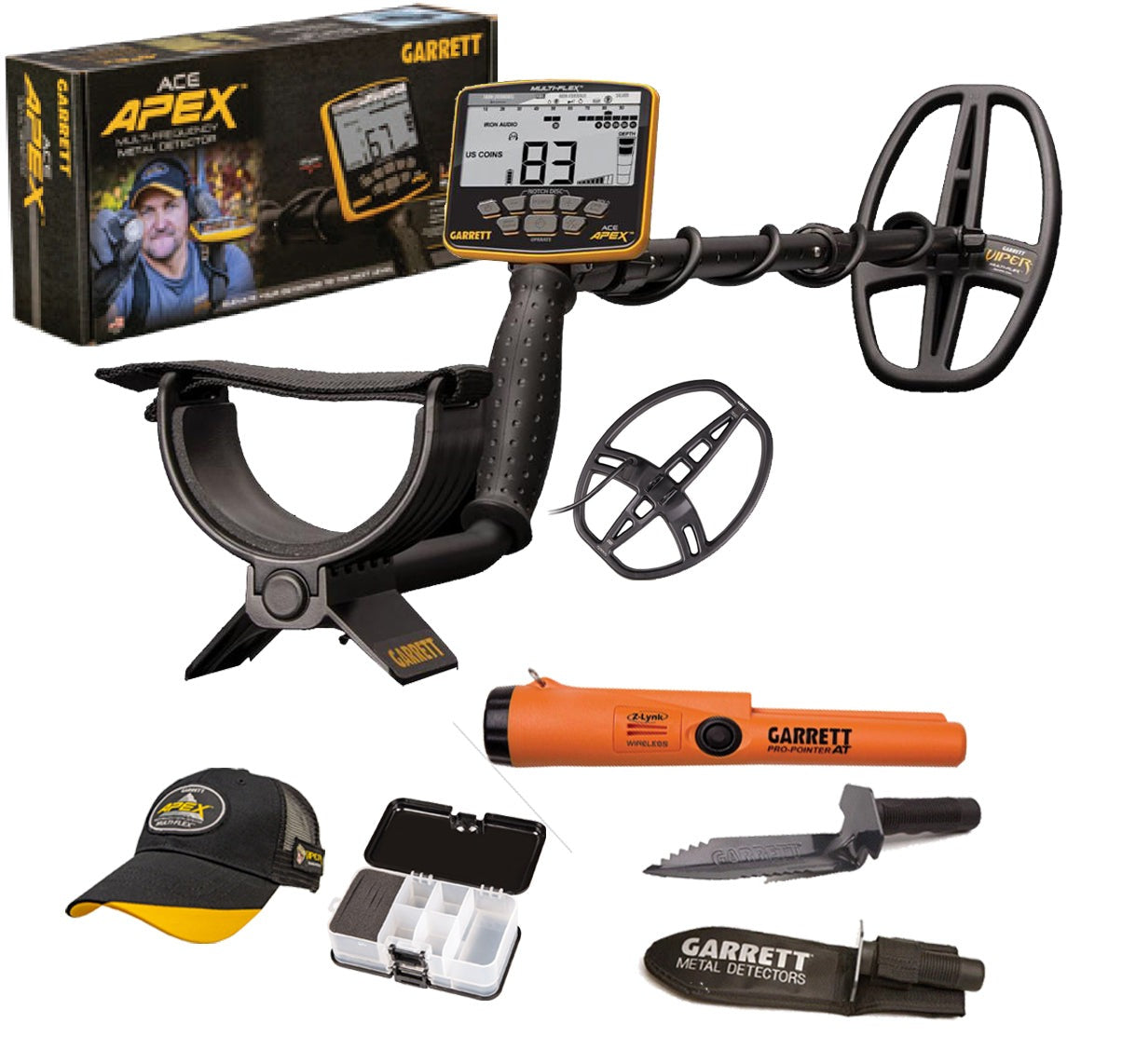

Garrett Apex Metal Detector with 8.5” x 11” Multi-Flex DD Raider Coil

• APEXFREQUENCY OPTIONS 5kHz|10kHz|15kHz|20kHz|Multi-Frequency|Multi-Salt Specifications
• IRON VOLUME:CONTROL WHAT YOU HEAR IRON VOLUME allows user to decrease the volume of iron targets, while the volume of non-ferrous targets remains at normal level.
• Experienced treasure hunters often like hearing all targets, but will appreciate the option to decrease volume of undesired items.
• With eight Iron Volume adjustments, Apex offers more flexibility than any other detectors in its price range.
• EXCELLENT DETECTION DEPTH on a wide variety of targets. >
• FAST TARGET RECOVERY SPEED HIGHLY VERSATILE LIGHT WEIGHT Well-Balanced
• Only 2.5 Pounds Multi-Flex Multi-Frequency technology makes Apex ideal for coin shooting, relic hunting, shallow water wading, beach hunting, and even prospecting! >
• INTUITIVE AND EFFICIENT CONTROLS Direct drive buttons for most frequently used controls. Easy-access menu adjustments for other controls.
• SIX DETECTION MODES + PINPOINT Zero, Coins, US Coins (with coin icons), Jewelry, Relics, and CustomHI-RESOLUTION GROUND BALANCE
• Available Packages: ACE APEX (Standard Package)Includes Apex metal detector and Viper coil cover.PN: 1142320 ACE APEX WIRELESS PACKAGEIncludes Apex metal detector, MS-3 Z-Lynk wireless headphones, and Viper coil cover. (Big savings over buying MS-3 separately)PN: 1142325Go fully wireless! 175 points of ground balance resolution (like the Garrett AT Max), ranging from ferrous ground to saltwater.
• LARGE TARGET ID NUMBERSRECHARGEABLE BATTERY Built-in rechargeable lithium ion battery provides up to approximately 15 hours of use, depending on setting. Micro-USB charging cable included.
• IRON AUDIO Garrett’s unique feature helps to correctly identify complex iron objects, such as bottle caps.
• 5-TONE AUDIBLE TARGET ID Five distinct tones provide greater audible target identification than on Garrett detectors.
• HYBRID AUDIO SYSTEM The Apex target audio provides the simplicity of binary audio (found on existing ACE detectors) with the additional benefits of subtle proportional audio for faint targets.
• HI-RESOLUTION DISCRIMINATION Twenty pixels of Notch Discrimination, including 8 pixels of Iron.
• BACKLIT LCDVOLUME CONTROL For both the built-in speaker and headphones.
• EIGHT SENSITIVITY/DEPTH ADJUSTMENTS 1/8” JACK for optional wired headphones
• BUILT-IN Z-LYNK WIRELESS TECHNOLOGY Up to 6 times faster than Bluetooth. Hunt without the cords!

• Multi-Flex™ Technology:              ✔
• Single Frequency Options:    5, 10, 15 and 20 kHz
• Multi-Frequency Options:   Simultaneous Multi-Freq. and Multi-Salt
• Z-Lynk™ Wireless Technology:   ✔
• Fast Target Separation/Recovery:            ✔
• 1/8" Headphone jack:    ✔
• Backlight:            ✔
• Iron Audio:         ✔
• Iron Volume Control:     ✔
• Iron Discrimination Segments:  8
• Volume Adjustment:      ✔ (Built-in)
• Notch Discrimination:   20
  selectable segments
• Search Modes:  6, with International and U.S. Coins modes
• Large Digital Target ID:  0 to 99 scale
• Sensitivity/ Depth Adjustments:               8
• Ground Balance, Auto/Manual:   Auto, High Resolution, 175 pts
• Pinpoint:             ✔
• Waterproof coil/stem:  ✔
• Rainproof control box:  ✔
• Audio Tone ID Levels:     5
  tones included with hybrid binary and proportional audio system
• Target Depth Indicator: 2" / 5cm segments
• Standard Searchcoil:      6" x 11" DD Viper™
• Length (Adjustable):      40" to 53" (1.016m - 1.35m)
• Power: Rechargeable Lithium Ion Battery, built-in
• Battery Condition Indicator:       ✔
• Warranty:            3 Years, Limited Parts/Labor
• Total Weight:     2.5 lbs (1.13 kgs)

5" x 8" DD Multi-Flex Ripper Searchcoil

6" x 11" DD Multi-Flex Viper™ Searchcoil

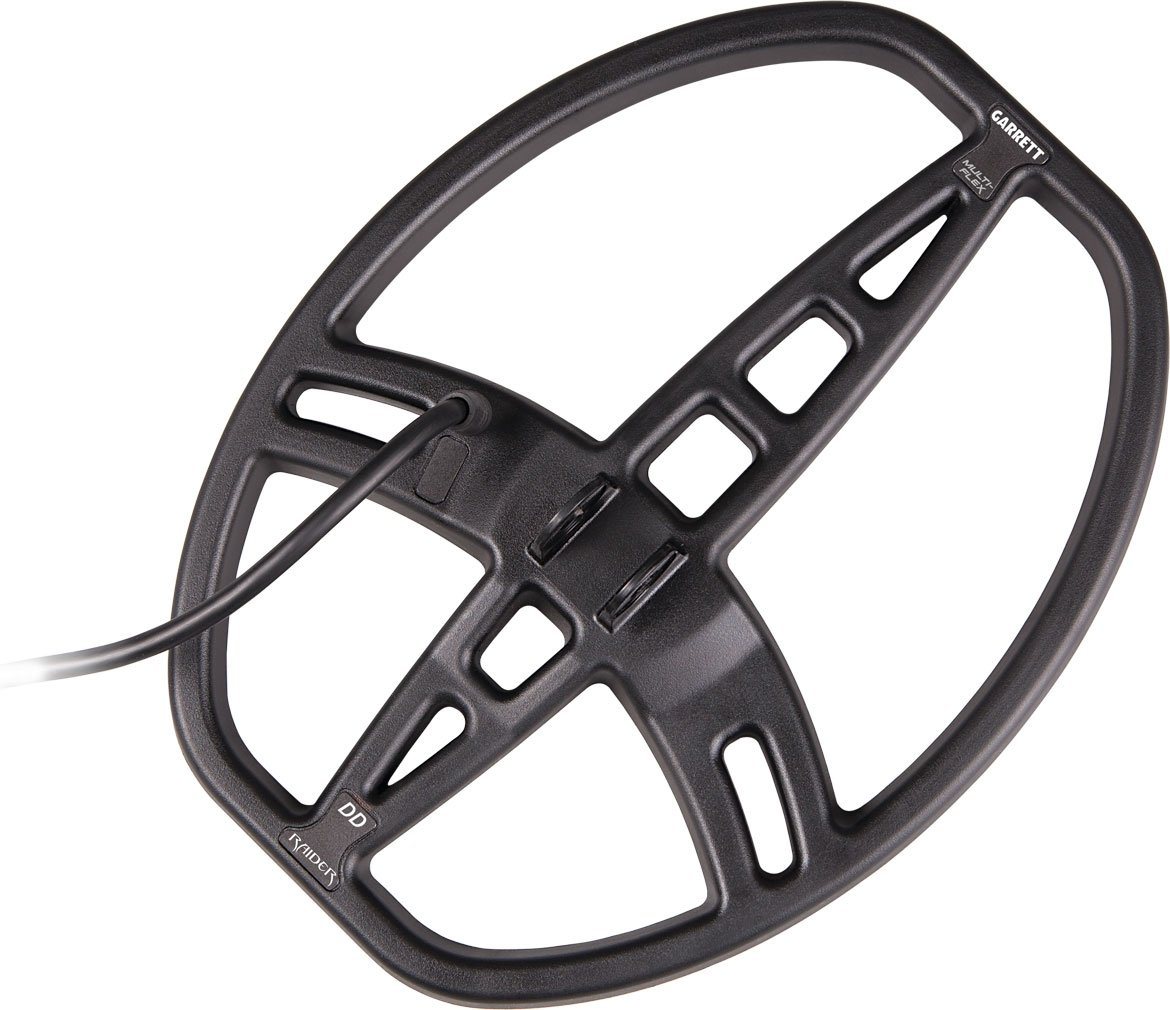

8.5" x 11" DD Multi-Flex Raider™ Searchcoil

14" x 11" DD Multi-Flex Reaper™ Searchcoil

Garrett Ace Apex Metal Detector User Manual
