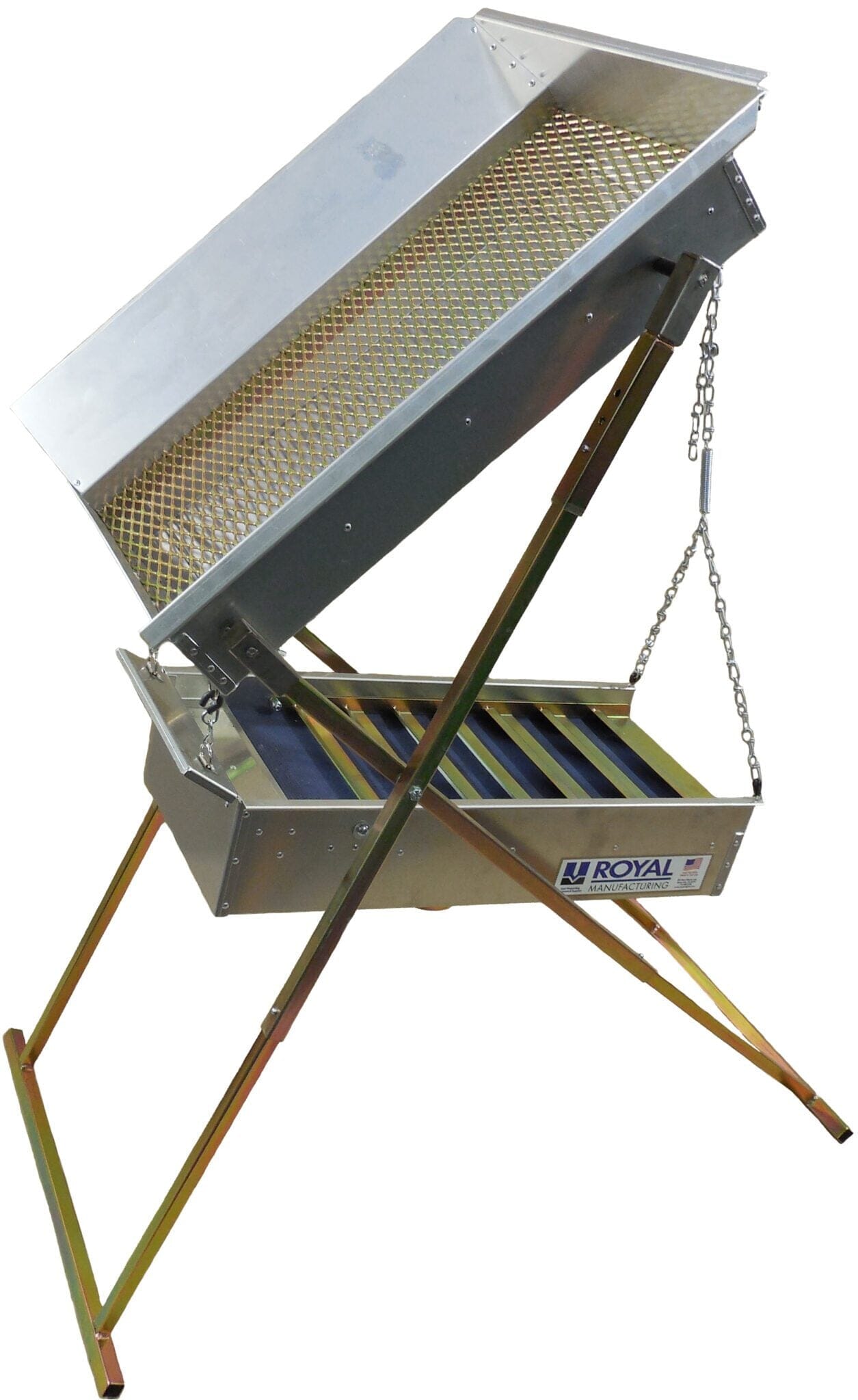

Royal Explorer Drywasher | Lightweight High-Efficiency Desert Gold Recovery System

Recover Fine Gold in Dry Areas Without Water

The Royal Explorer Drywasher is a compact, lightweight gold recovery system designed for prospectors working dry washes, desert placers, and other areas where water is limited or unavailable.

Weighing approximately 20 pounds, the Explorer is well suited for individual prospectors who need a drywasher that is easier to transport, assemble, and operate. Its telescoping legs and tool-free breakdown make it convenient for remote prospecting locations while still providing an oversized hopper and an efficient recovery system.

The Explorer uses forced air, vibration, riffles, and electrostatic separation to help remove lighter material while retaining heavier gold in the recovery box. A compatible blower and 3-inch drywasher hose are required and sold separately.

Features

• Lightweight design weighs approximately 20 pounds

• Compact size for one-person operation

• Fully enclosed classifier and hopper

• Oversized 15" x 18" hopper

• 7" x 18" recovery box

• Adjustable material flow valve

• Hopper adjusts to three feeding angles

• Combination riffles laser-cut from a single piece of steel

• Baffled first riffle helps distribute air pressure evenly

• Helps prevent fine gold from blowing out at the first riffle

• Electrostatic-isolated recovery box

• Zinc-plated steel components

• Stainless-steel frame receiver sockets and cross pins

• Telescoping legs

• Tool-free setup and breakdown

• Concentrates slide easily into a gold pan during cleanup

• Designed for use with a compatible 3-inch air hose and blower

• Made in the USA

Why Choose the Royal Explorer Drywasher?

The Explorer combines a portable design with many of the recovery features found on larger drywashing equipment. Its compact size makes it particularly useful for solo prospectors, remote locations, and smaller sampling operations.

The fully enclosed hopper helps keep oversized rocks from slipping beneath the classifier and clogging the adjustable material-flow valve. Its oversized feeding area makes loading material easier, while the three-position hopper allows the operator to adjust the feeding angle for different types of dry material.

The recovery box incorporates combination riffles, controlled airflow, vibration, and electrostatic separation to help retain both coarse and fine gold.

Performance Benefits

✔ Processes gold-bearing material without water

✔ Lightweight enough for individual prospectors

✔ Oversized hopper allows convenient material feeding

✔ Fully enclosed hopper helps prevent flow-valve blockages

✔ Baffled first riffle distributes air more evenly

✔ Combination riffles support efficient gold recovery

✔ Electrostatic isolation helps retain fine gold

✔ Adjustable hopper angle accommodates different material conditions

✔ Breaks down without tools for transportation and storage

Fully Enclosed 15" x 18" Hopper

The Explorer features an oversized 15" x 18" hopper that provides ample room for feeding dry material. Its enclosed design helps prevent large rocks from getting underneath the classifier and interfering with the adjustable flow valve.

The hopper can be adjusted to three different feeding angles, allowing the operator to regulate how quickly different types of material enter the recovery box.

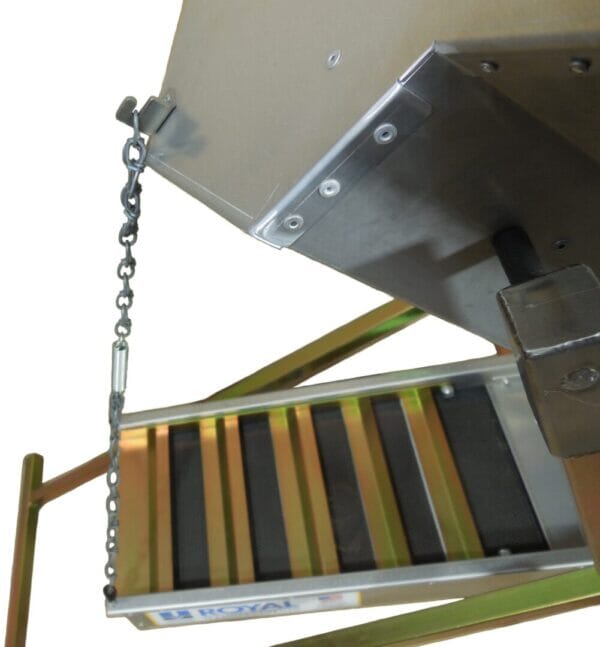

7" x 18" Recovery Box

The 7" x 18" recovery box uses a combination riffle system laser-cut from a single piece of steel. This construction provides consistent riffle placement and eliminates individual riffle components that could loosen or become misplaced.

A baffled first-riffle section helps distribute air pressure evenly across the recovery area. This controlled airflow helps reduce the risk of blowing ultra-fine gold out of the system at the first riffle.

The recovery box is electrostatically isolated to support the natural static-charge process used by drywashers to help retain fine gold.

Easy Cleanup and Transportation

When the riffle tray is opened, collected concentrates can slide directly into a gold pan for final processing. The Explorer breaks down without tools, making field setup, cleanup, transportation, and storage easier.

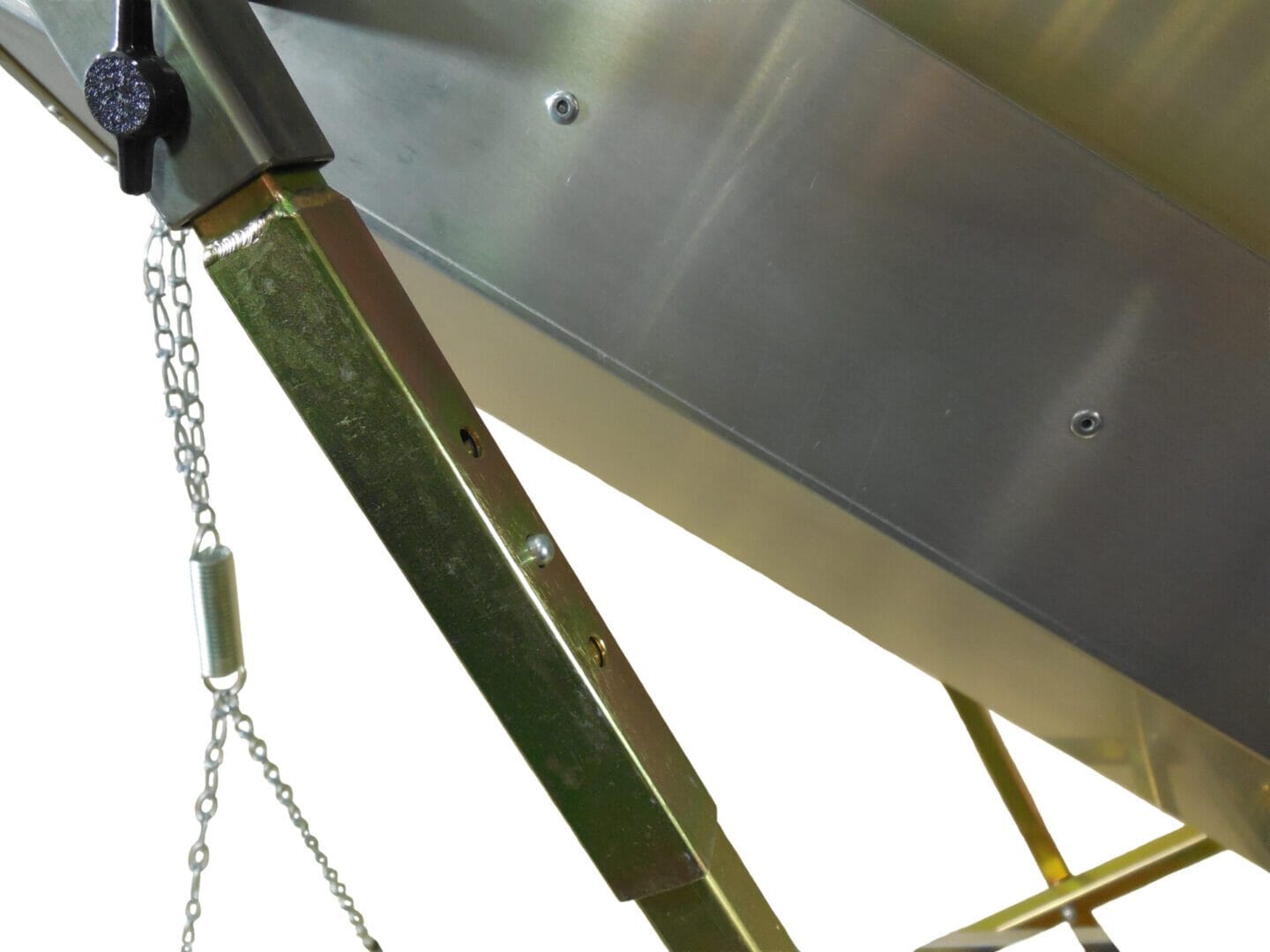

Its telescoping legs reduce the unit’s packed size while allowing it to reach a working height of approximately 38.5 inches when assembled.

Ideal Applications

• Desert gold prospecting

• Dry placer deposits

• Dry washes and arroyos

• Remote prospecting locations

• Areas with restricted water access

• Sampling potential gold-bearing ground

• Processing dry classified material

• Working old mine dumps

• Processing drywash tailings

• Small-scale placer mining

• One-person prospecting operations

Specifications

• Product: Royal Explorer Drywasher

• Manufacturer: Royal Manufacturing Industries

• SKU: 00041

• Hopper Dimensions: 15" x 18"

• Recovery Box Dimensions: 7" x 18"

• Maximum Assembled Height: Approximately 38.5"

• Weight: Approximately 20 Pounds

• Construction: Aluminum with Zinc-Plated Steel Components

• Frame Hardware: Stainless-Steel Receiver Sockets and Cross Pins

• Hopper Positions: Three Adjustable Feeding Angles

• Air-Hose Connection: 3"

• Setup: Tool-Free Assembly and Breakdown

• Power Source: Compatible External Blower

• Country of Manufacture: USA

Power Requirements

The Royal Explorer Drywasher requires an external blower and compatible 3-inch air hose to supply airflow to the recovery box.

Blower and 3-inch drywasher hose are sold separately.

The Royal Power-Vac can be used as a compatible blower source while also providing a separate vacuum system for recovering gold-bearing material from cracks and crevices.

Why Prospectors Choose the Explorer

✔ Compact alternative to larger drywashing systems

✔ Easy for one person to transport and operate

✔ Efficient recovery design for fine and coarse gold

✔ No water required

✔ Adjustable for different types of dry material

✔ Simple tool-free field assembly

✔ Durable corrosion-resistant components

✔ American-made prospecting equipment

Get Better Results from Your Drywasher

For the best recovery, material should be completely dry before processing. Damp dirt and clay can clump together, restrict classification, reduce airflow, and prevent gold from separating properly.

Classify material to remove oversized rocks, then begin with a controlled feed rate. Adjust the hopper angle, material-flow valve, drywasher pitch, and blower speed until the material moves evenly across the recovery box.

Avoid overfeeding the hopper. A slow, steady material flow generally provides better separation and gives the riffles more time to capture gold.

Operate gasoline-powered blowers outdoors in a well-ventilated area. Wear appropriate hearing, eye, and respiratory protection when processing dry, dusty material.

Why Buy From High Plains Prospectors?

At High Plains Prospectors, we understand the challenges of recovering gold in remote desert locations where water is unavailable. That’s why we offer dependable drywashing equipment from trusted manufacturers such as Royal Manufacturing Industries.

Every product is backed by knowledgeable customer support, competitive pricing, and fast shipping. Whether you need a drywasher, blower, air hose, classifier, crevice tool, gold pan, or other desert prospecting equipment, our experienced team is here to help.

Recover gold where water cannot be used with the Royal Explorer Drywasher—a lightweight, American-made desert gold recovery system featuring an oversized hopper, controlled airflow, electrostatic isolation, adjustable feeding, and tool-free portability.

This Dry washer has many fine features not found on any other Dry washer on the market today. Additional quality without the additional price. Features fully enclosed Hopper so no large rocks get in under the classifier clogging your adjustable flow valve. 15″ X 18″ Oversized Hopper for easy feeding.

The Explorer has a 7” x 18” Recovery Box, total height is 38.5” tall and weighs 20 lbs.

Both Dry washers have the following features not common in the competition.

• Fully enclosed hopper so no large rocks get in under the classifier clogging the flow valve.
• Oversized hopper for easy feeding.
• All steel components are zinc plated for durability.
• Combination riffles laser cut from a single piece of steel for enhanced recovery.
• Baffled first riffle to ensure even air pressure to prevent blowout of ultra fine gold at first    riffle.
• Stainless steel frame receiver sockets and cross pins.
• When riffles are opened, concentrates easily slide into gold pan.
• Easy no-tool breakdown. Nothing to lose.
• Electrostatic isolated recovery box.

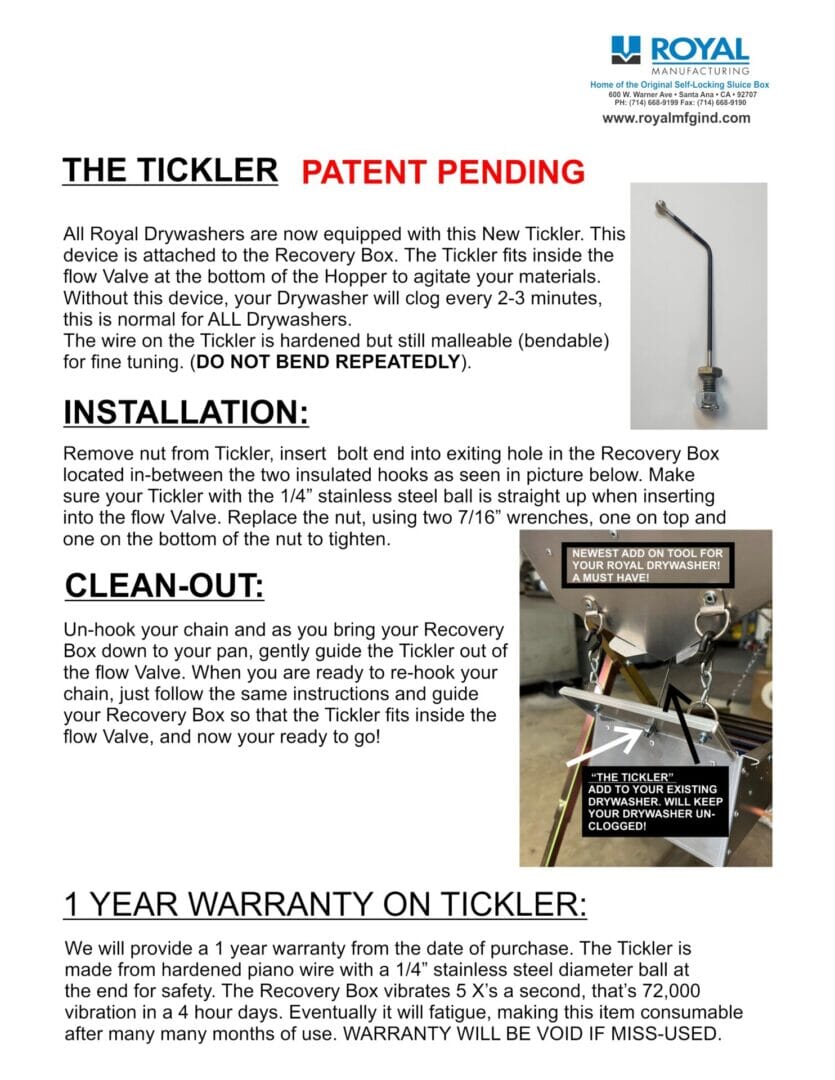

• NEW, Tickler, you will need to add this to your Recovery Box. PATENT PENDING

With the Explorer’s telescopic legs, it can be shipped in one box thus reducing the shipping cost.
