Rock Crusher Briggs & Stratton Gas-Gold Ore-14" Drum 3" Infeed-K&M Krusher

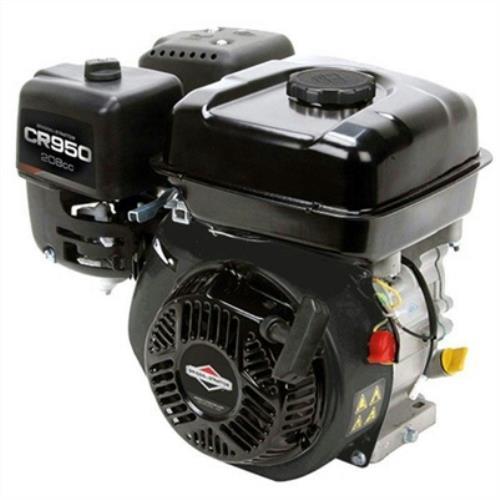

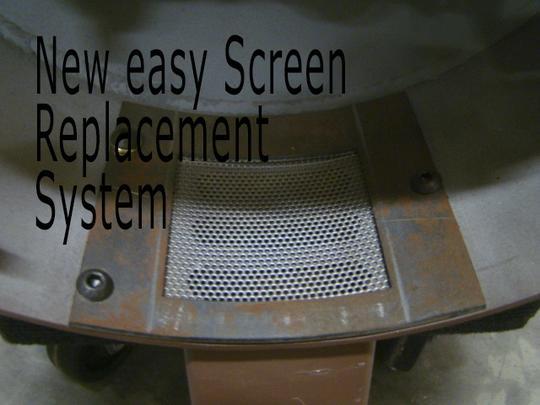

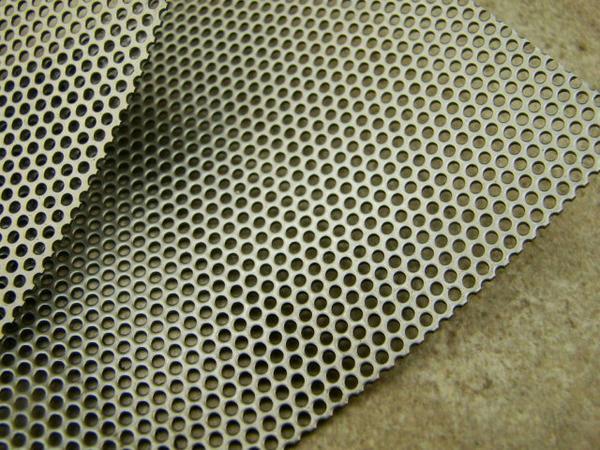

This new Rock Crusher from K&M Krushers. These crushers are the next generation of crushers. All of the critical parts are cut out with a CNC Laser cutter to insure everything is square and precise. The bolts & nuts that hold the hammers and mount your motors are schedule # 8 alloy. Your new K&M Krusher features a 14" Drum with a 3" Infeed Tube. The Hammers are a Rockwell Hardness of 62 on the outside and #58 on the inside turning your 2-3/4" rocks into 100-200 mesh talcum powder. Easy 3 wing knobs for front plate removal. (Always look for gold in the back/bottom corner of the drum) The screen in the bottom of the drum is now fitted with a new easy replacement system. The screen is stainless with more holes per inch than any other crusher allowing more thru-put. The Gas Motor is a Briggs & Stratton 950 Series Motor 6.5hp. Its a 4 stroke motor and designed for hard work. This crusher will come in 2 shipments, 1 is the Motor & the other is the crusher & all the parts to mount the motor.

Specifications
Make -Briggs & Stratton
Model - CR950
Type- Small Engine
Fuel-Gas Unleaded 86 Octane or Higher
Engine Type-4 Stroke OHV Single Cylinder
Bore/Stroke-2.76 X 2.13 in
Displacement-208 cc
Max Power-9.5 Ft. lbs
Starting Type-Recoil
Dimensions (L x W x H)-11.5 x 14.75 x 13.25 in.
Muffler Included-Yes
Fuel Tank-Yes
Dry Engine Weight-39 lbs.
Shaft Type-Keyed - Straight
Shaft Diameter-3/4" Diameter, 3/16" Keyway
Shaft Length-2-27/64" Total
Shaft I.D. Thread Size-5/16"-24 Drilled and Tapped
Bolt Pattern-4 Bolt
Oil System-Splash
Oil Capacity-1.25 Qts
Reduction Type-None
Engine Cooling Type-Forced Air Cooling

Currently these crushers are in Stock

This unit is Built to last...Heavy duty construction Turns rock into a talcum power like dust 100-200 Mesh 500-1000 Lbs per hour ready to process and get your GOLD

International & HI & AK and all other places other than the Lower 48 States Call or email us for a freight or UPS Quote
