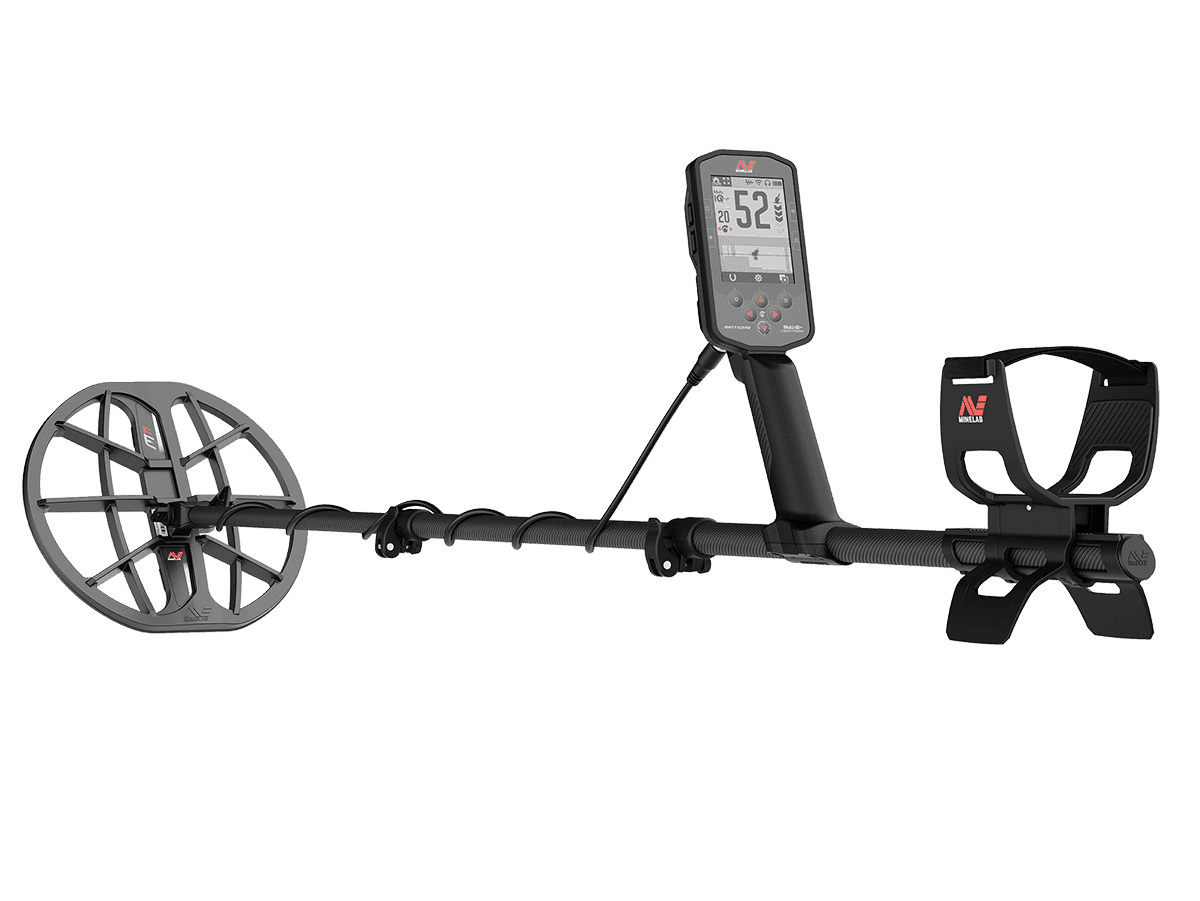

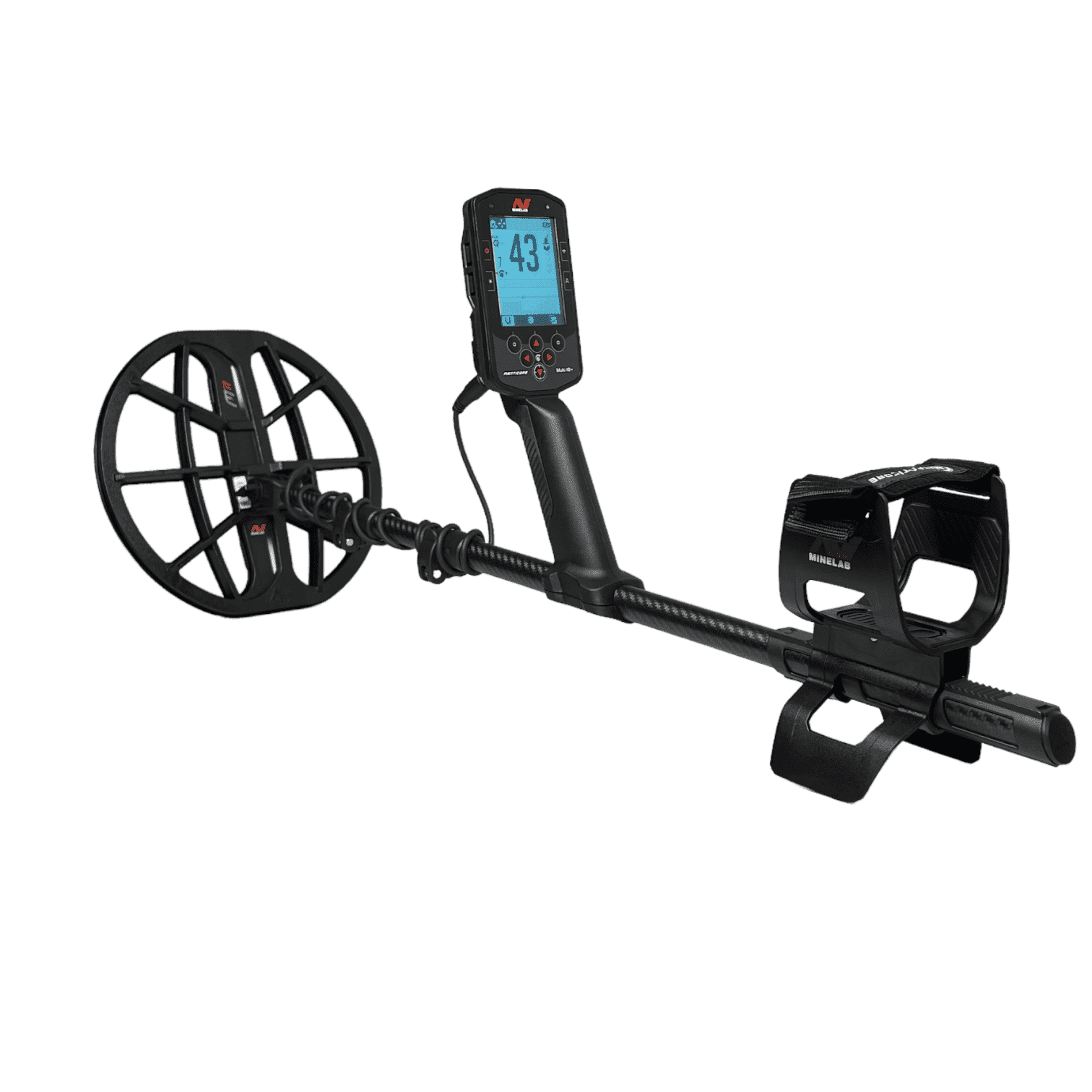

Minelab Manticore Metal Detector with M15 and M8 Coils

Minelab MANTICORE Metal Detector with M8, M11 and M15 Search Coils

Experience Minelab’s advanced detecting technology with this complete three-coil MANTICORE package. The MANTICORE combines high-powered Multi-IQ+ simultaneous multi-frequency technology, a two-dimensional Target ID map and extensive audio controls to give serious detectorists detailed information about buried targets before they dig.

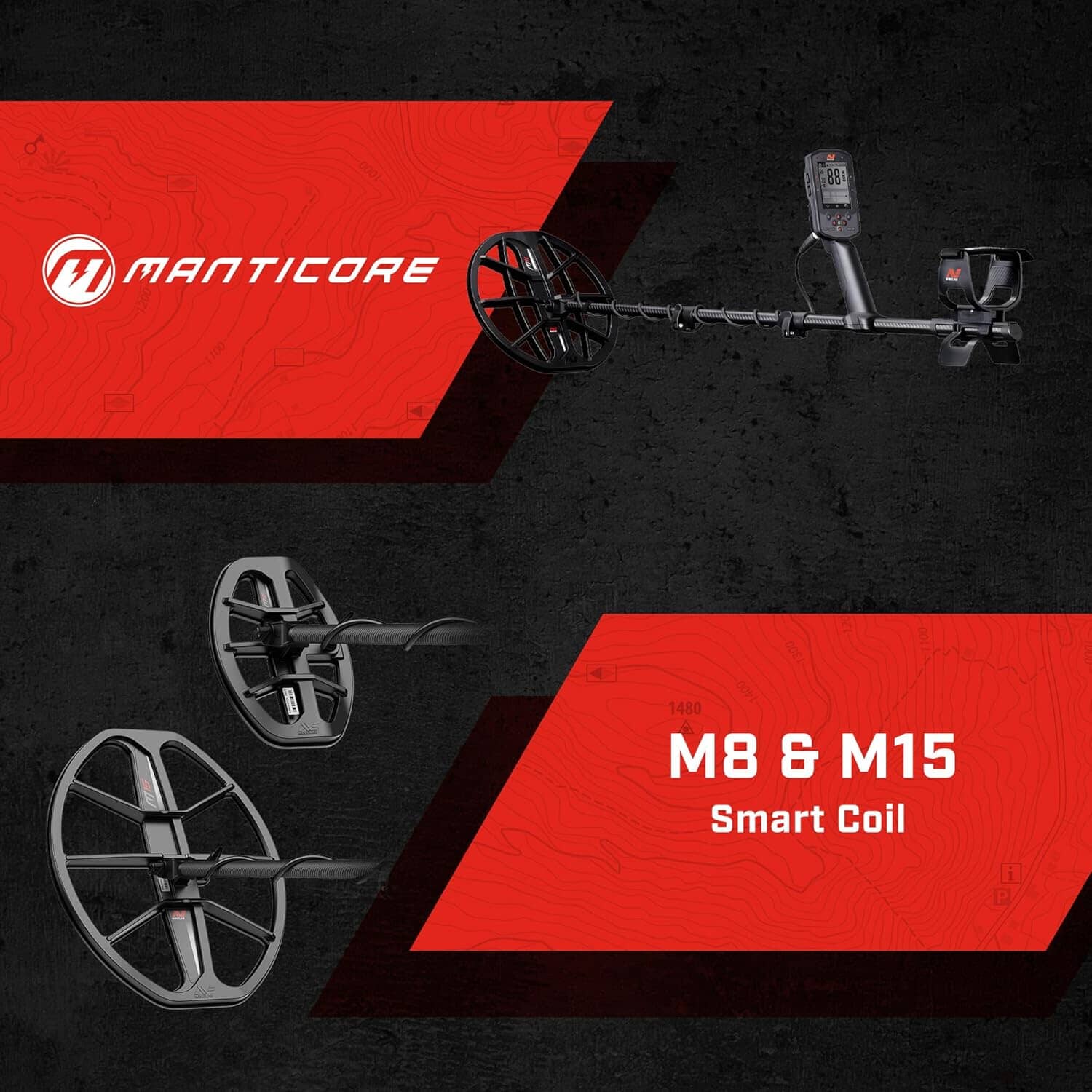

This package includes three waterproof Double-D search coils. Navigate difficult terrain and target-filled ground with the compact M8, handle everyday treasure hunting with the balanced M11, and search deeper while covering open areas efficiently with the large M15.

MANTICORE Features

• Multi-IQ+ high-power simultaneous multi-frequency technology

• Up to 50% more transmitted power than Minelab’s traditional Multi-IQ detectors

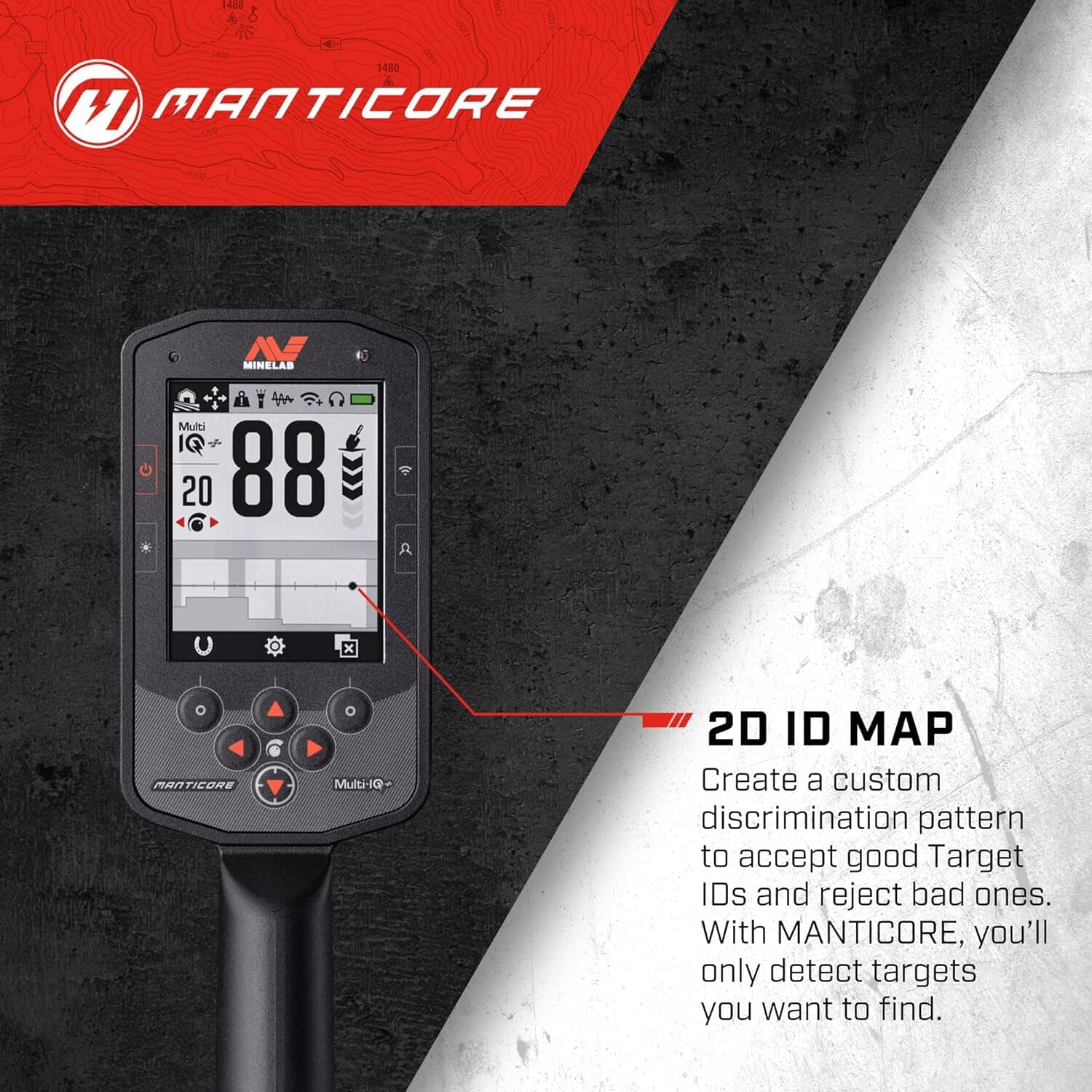

• Advanced two-dimensional Target ID map

• Target Trace for detailed visual target information

• Conductive Target ID range from 0 to 99 with ferrous indication

• Five All-Terrain search modes

• Four Beach search modes

• Goldfield search mode

• Customizable user search profile

• Selectable 5, 10, 15, 20 and 40 kHz single frequencies

• Sensitivity adjustable from 1 to 35

• Automatic, continuous automatic and manual Noise Cancel

• Automatic, manual and tracking Ground Balance

• Adjustable Recovery Speed

• Customizable upper and lower Ferrous Limits

• Multiple audio themes and volume profiles

• Electronic pinpoint mode

• Five-level target-depth indicator

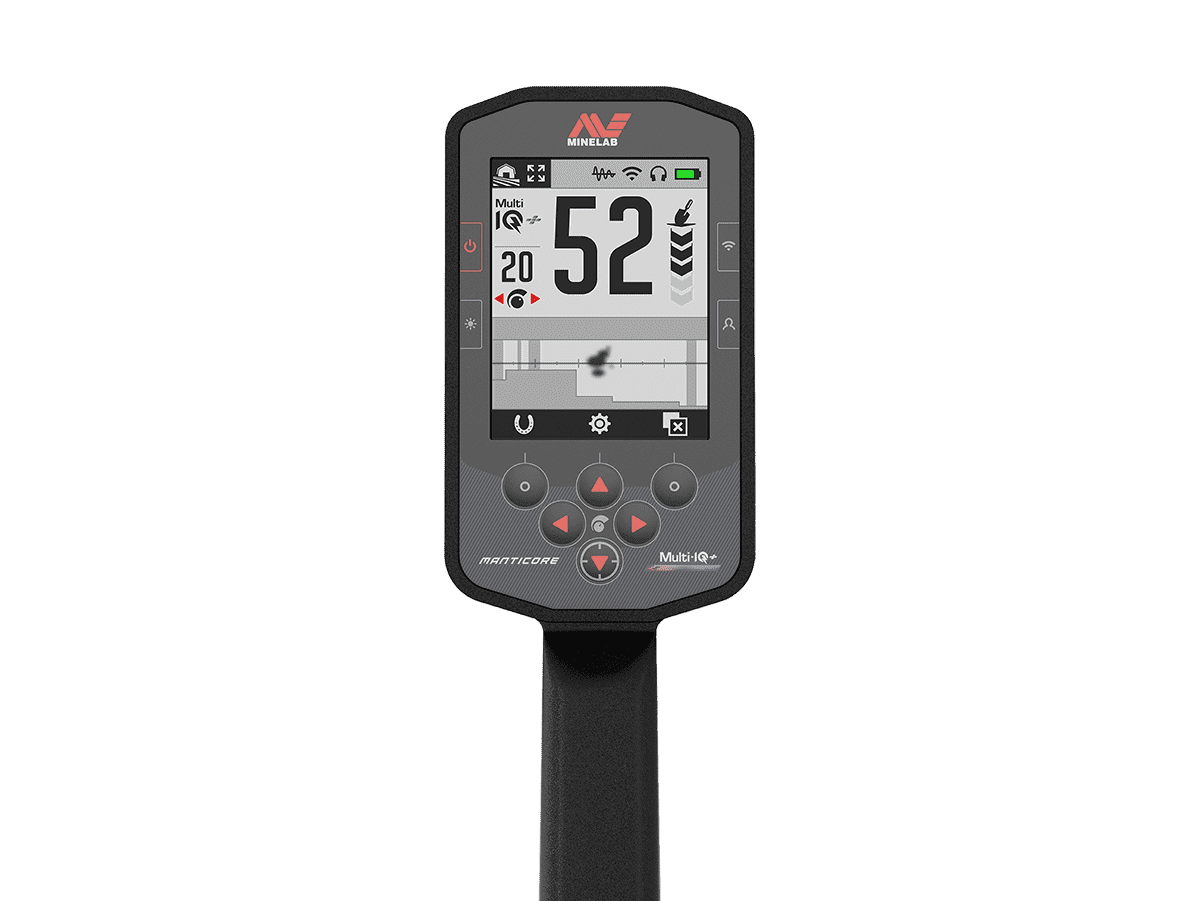

• Full-color LCD screen

• Automatic or manually adjustable display brightness

• Backlit keypad

• Built-in control-pod flashlight

• Proportional handgrip vibration

• Lightweight three-piece carbon-fiber shaft

• Built-in speaker and wired audio connection

• Low-latency wireless audio

• Fully waterproof to 16 feet

• Software upgradeable through USB

• Three-year Minelab limited warranty

Three Waterproof Search Coils

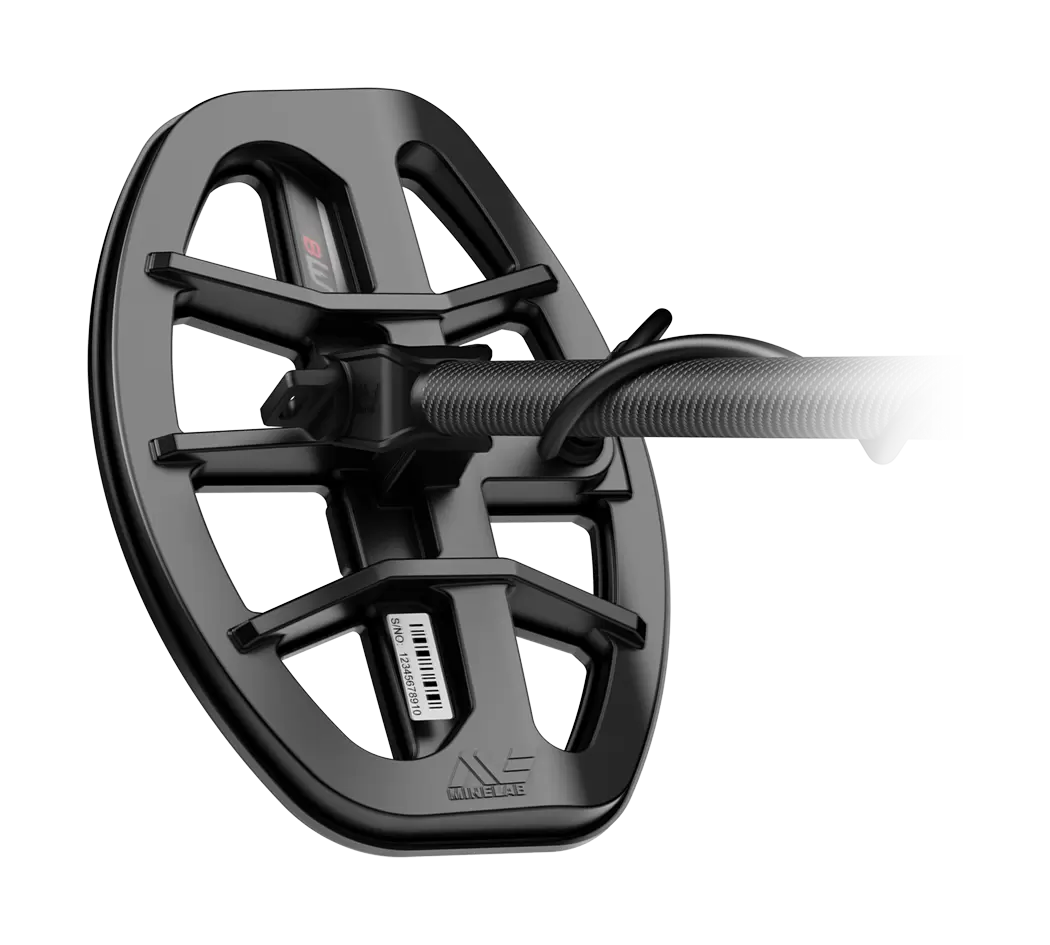

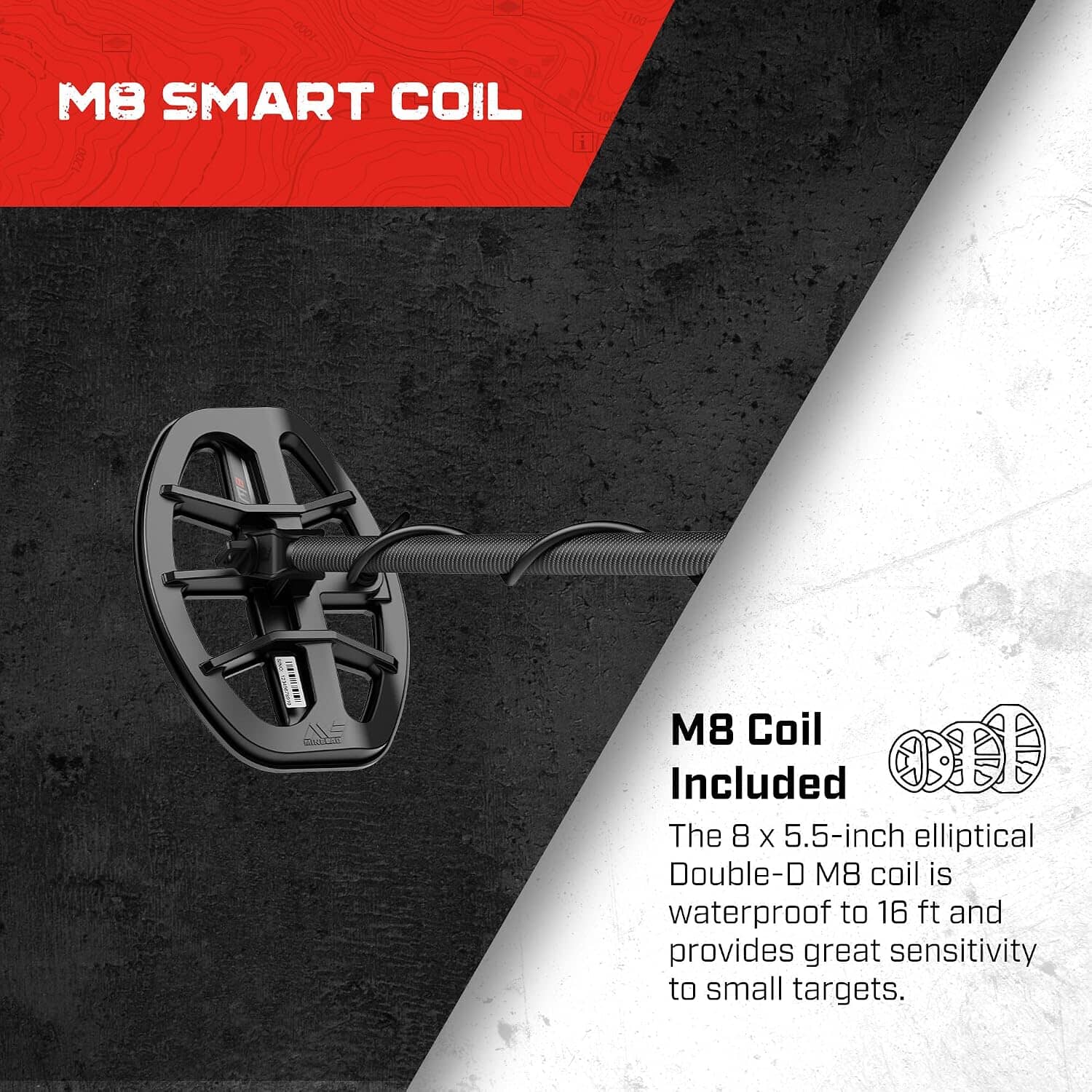

M8 8" x 5.5" Double-D Coil

The compact elliptical M8 provides excellent sensitivity to small targets and increased maneuverability in difficult terrain. Its narrow footprint makes it particularly effective in iron-contaminated ground, modern trash, tight spaces and areas containing numerous obstacles.

• Dimensions: 8" x 5.5"

• Configuration: Elliptical Double-D

• Weight with skid plate: Approximately 14.1 ounces

• Waterproof depth: 16 feet

• Best for: Small targets, separation and difficult terrain

M11 11" Round Double-D Coil

The standard M11 provides an excellent balance of depth, sensitivity, ground coverage and target separation. It is the versatile everyday choice for detecting coins, jewelry and relics in parks, fields, beaches and shallow water.

• Diameter: 11 inches

• Configuration: Round Double-D

• Waterproof depth: 16 feet

• Best for: General-purpose detecting

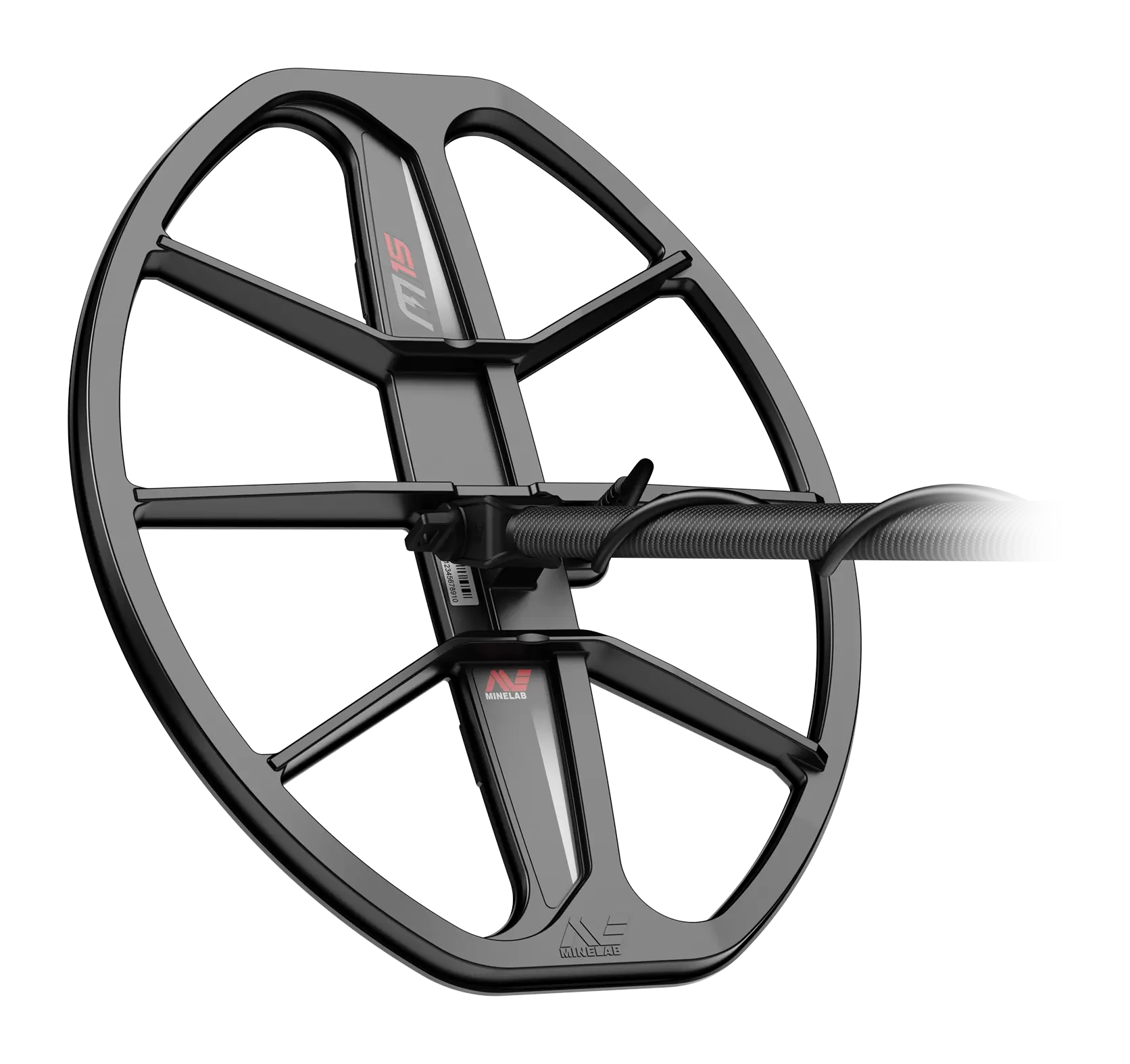

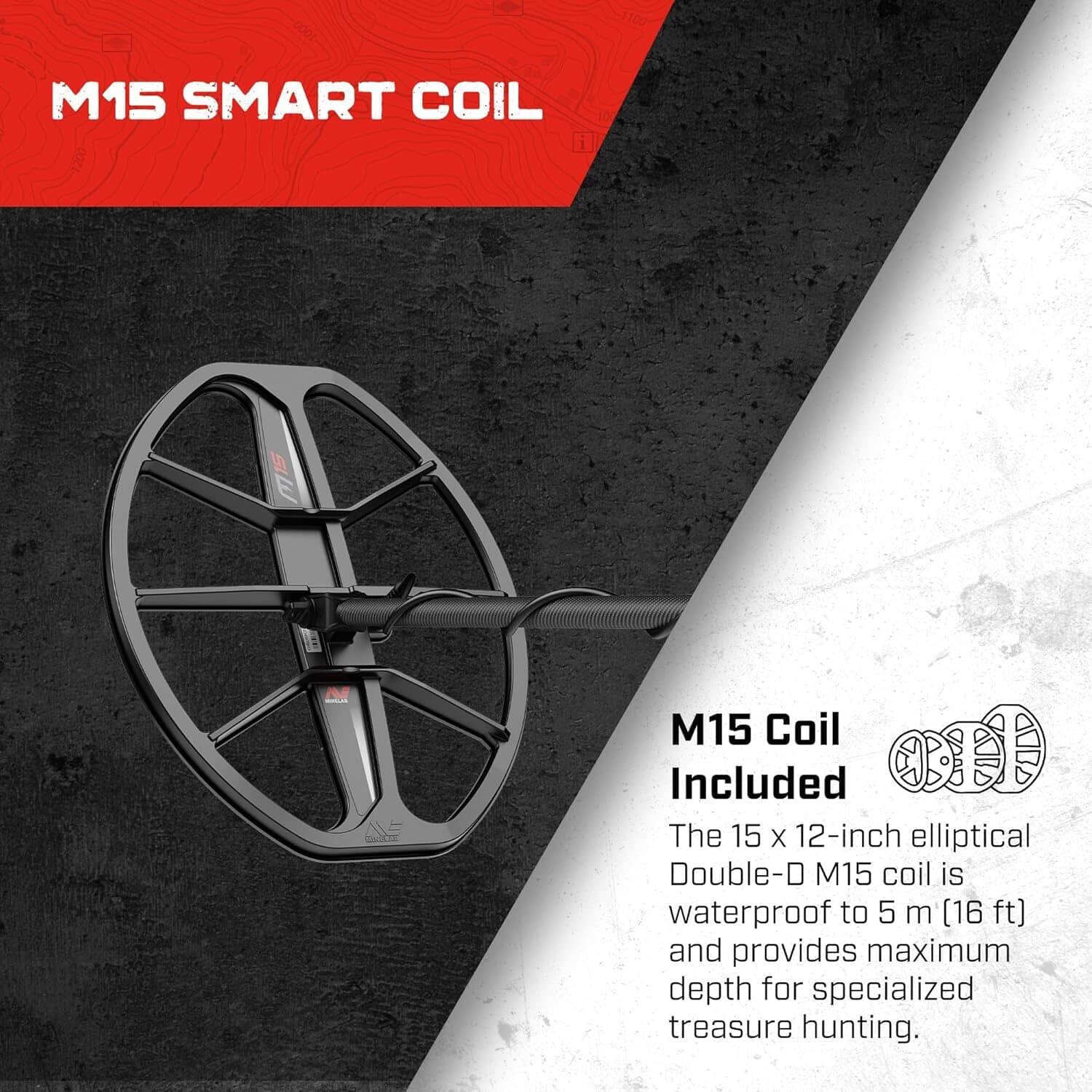

M15 15" x 12" Double-D Coil

The large elliptical M15 provides maximum ground coverage and excellent depth potential for specialized treasure hunting. It is ideal for searching beaches, farm fields and other open areas where efficiency and depth are priorities.

• Dimensions: 15" x 12"

• Configuration: Elliptical Double-D

• Weight with skid plate: Approximately 22.9 ounces

• Waterproof depth: 16 feet

• Best for: Increased coverage and deeper targets

All three coils include protective skid plates.

Three-Coil Package Benefits

• Match the search-coil size to the terrain and target conditions

• Separate closely spaced targets with the compact M8

• Search around rocks, roots and other obstacles

• Handle everyday treasure hunting with the versatile M11

• Cover more ground and pursue deeper targets with the M15

• Analyze targets using detailed visual and audible information

• Detect effectively in parks, fields, beaches and goldfields

• Search on land or underwater

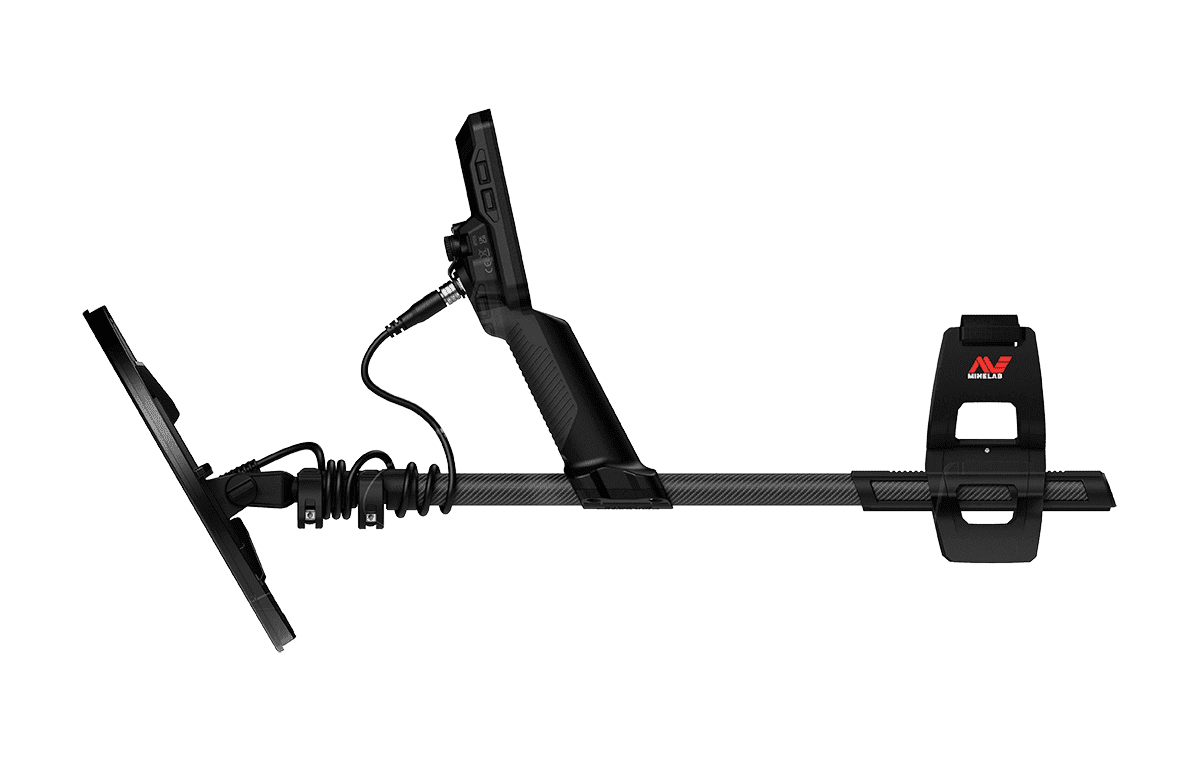

• Collapse the carbon-fiber shaft for convenient transportation

• Hear rapid target responses through ML 105 wireless headphones

MANTICORE Specifications

• Detection technology: Multi-IQ+

• Single-frequency options: 5, 10, 15, 20 and 40 kHz

• Search modes: All-Terrain, Beach and Goldfield

• Custom user search profile: Yes

• Sensitivity range: 1–35

• Target ID range: 0–99 with ferrous indication

• Target display: Two-dimensional ID map with Target Trace

• Recovery Speed: 0–8

• Depth indicator: Five levels

• Display: Full-color LCD

• Audio: Built-in speaker, 1/8" wired output and low-latency wireless

• Included headphones: Minelab ML 105 wireless headphones

• Shaft: Three-piece collapsible carbon fiber

• Extended length: Approximately 56.7 inches

• Collapsed length: Approximately 24.8 inches

• Weight with M11 coil: Approximately 2.9 pounds

• Waterproof rating: IP68

• Maximum waterproof depth: 16 feet

• Battery: Internal rechargeable 3.7V, 6800mAh lithium-ion

• Approximate operating time: 10 hours

• Approximate charging time: Seven hours

• Operating temperature: 14°F to 104°F

• Storage temperature: -4°F to 158°F

• Software upgradeable: Yes

• Detector warranty: Three years

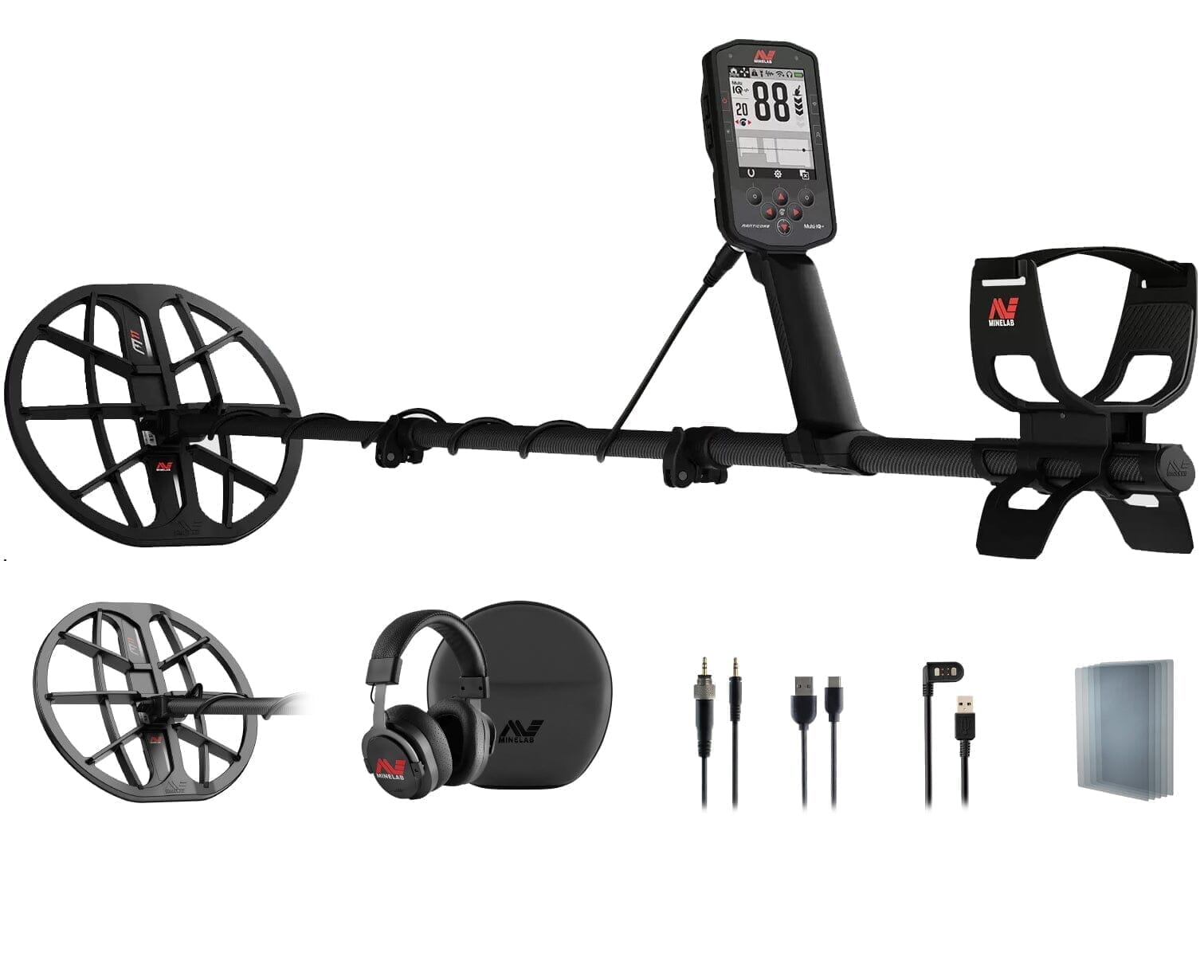

Included in This Package

• Minelab MANTICORE metal detector

• M8 8" x 5.5" waterproof Double-D coil

• M8 protective skid plate

• M11 11" waterproof Double-D coil

• M11 protective skid plate

• M15 15" x 12" waterproof Double-D coil

• M15 protective skid plate

• Minelab ML 105 low-latency wireless headphones

• ML 105 hard carrying case

• Headphone audio cable

• Headphone charging cable

• Magnetic USB detector charging cable

• Five screen protectors

• Search-coil mounting hardware

• Getting Started Guide

Ideal For

• Serious coin and jewelry hunters

• Relic detecting

• Beach and surf hunting

• Gold prospecting

• Freshwater and saltwater detecting

• Trashy or iron-contaminated sites

• Difficult terrain and confined spaces

• Deep-target searching

• Large fields and open beaches

• Advanced users who want extensive control

• Detectorists seeking three specialized coil sizes

Important Information

The MANTICORE and all three included search coils are waterproof to 16 feet. The supplied ML 105 wireless headphones are not waterproof, and wireless audio does not operate while the detector is submerged. Compatible Minelab waterproof headphones are required for underwater audio.

The M8 and M15 coils are designed specifically for the Minelab MANTICORE and are not compatible with EQUINOX or X-TERRA detectors.

Introducing the Manticore, featuring the revolutionary Multi-IQ+ technology – a true testament to Minelab's unwavering dedication to pushing the boundaries of innovation. This latest addition stands as the ultimate embodiment of power, speed, and precision in the realm of metal detectors. At its heart lies the unparalleled Simultaneous Multi-Frequency (MULTI-IQ+) engine, a technological masterpiece that outshines all its predecessors. With this extraordinary advancement, the Manticore elevates detection power by an impressive 50% compared to the esteemed EQUINOX, which stands as Minelab's best-selling detector series to date.

This potency is further enriched by the seamless integration of advanced 2D Target Identification (ID) and a wide array of immersive audio options. All critical information is effortlessly delivered to the detectorist's senses. Embarking on a detecting adventure with the Manticore ensures an unparalleled experience that transcends the limits of traditional detection methods. Prepare yourself for heightened potency, increased depth capabilities, and an abundance of groundbreaking discoveries like never before.

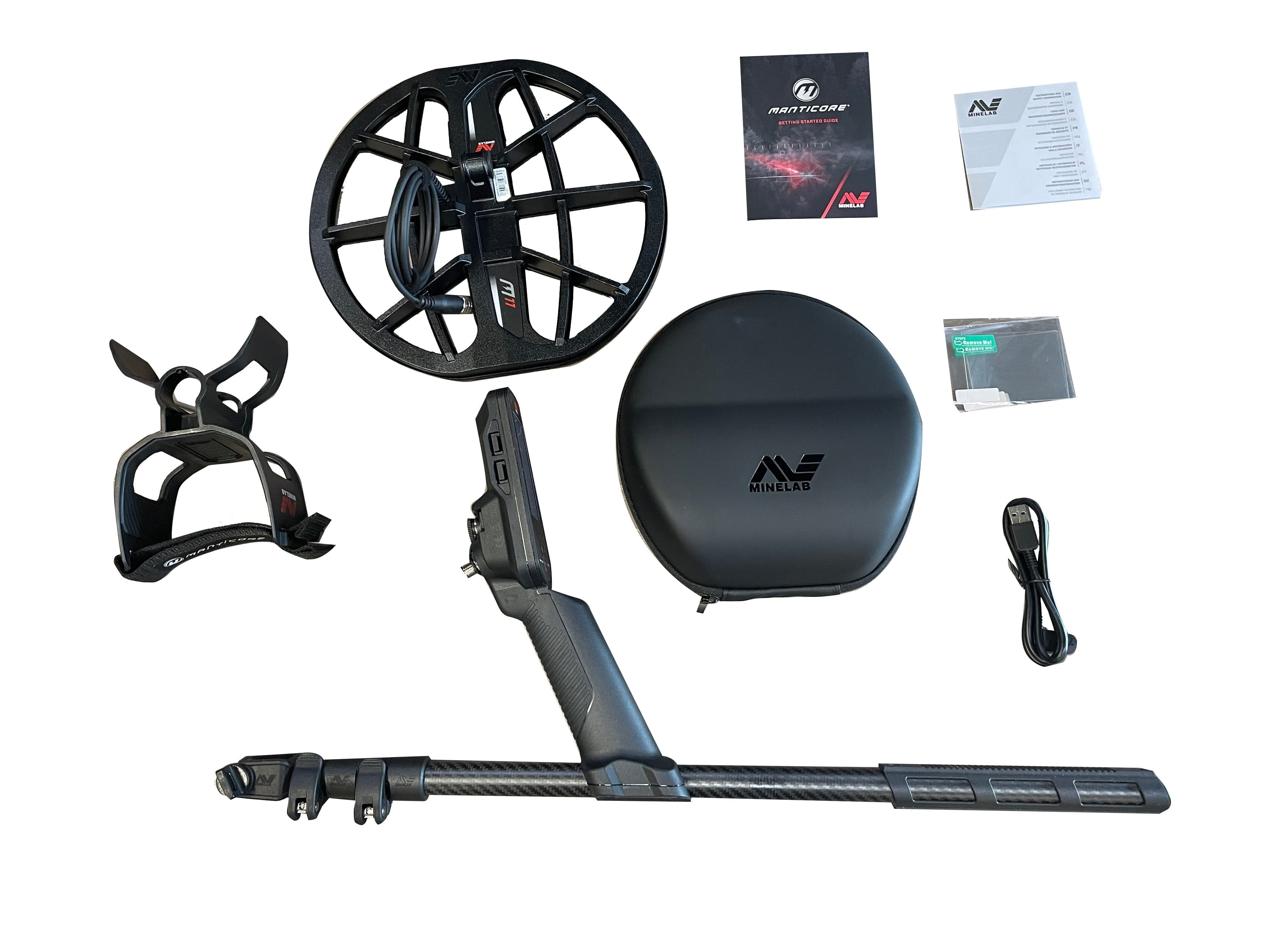

This package includes the following:

• MANTICORE High Power Metal Detector
• M11 Coil with Skidplate (11″ Round Double-D — Waterproof to 5m/16ft)
• Low Latency Wireless Headphones with Carry Case
• Wireless Headphone Accessories — Audio Cable and Charging Cable
• Magnetic USB Charge Cable
• 5 x Screen Protectors
• Getting Started Guide

This package also includes:

• Minelab Manticore 15" DD M15 Coil
• Minelab Manticore 8" DD M8 Coil
