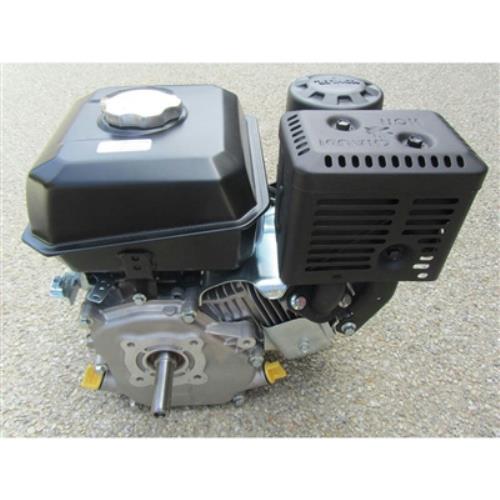

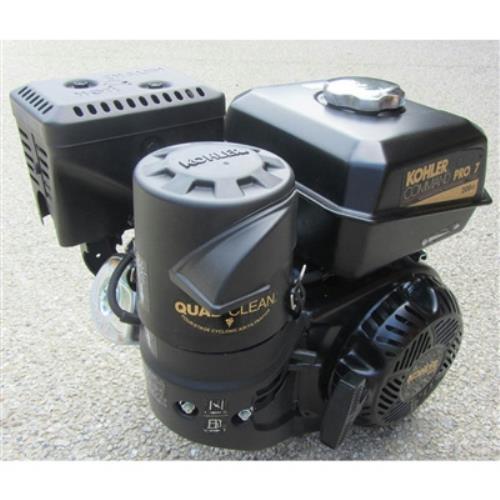

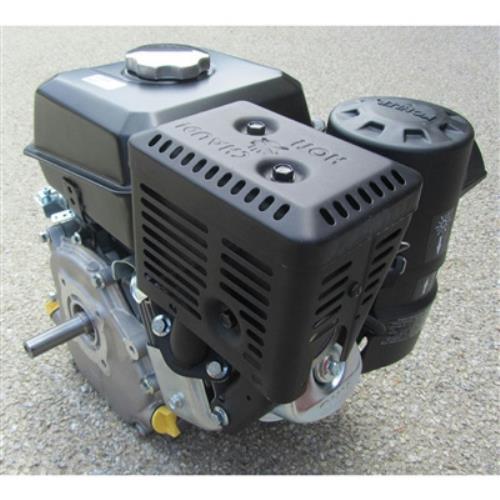

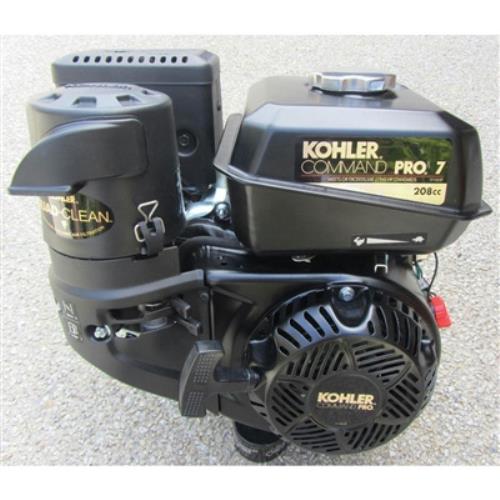

This Kohler 7HP gasoline engine features a 4-cycle, slant cylinder design, with a cast iron cylinder bore and overhead valve for easy access. The Quad-Clean™ 4-stage air filtration system ensures only clean air enters the engine for maximum power and life of the engine. In addition, this small Kohler engine is backed by a 3 year commercial warranty.
Specifications
Make: Kohler
Model: CH270 - 7HP Recoil
Type: Small Engine
Fuel: Gas Unleaded 86 Octane or Higher
Engine Type: 4 Stroke OHV Single Cylinder
Bore/Stroke: 70X 54
Displacement: 208cc
Compression Ratio: 8:5:1
Max Power: 7HP @ 4000 RPM
Max Torque: 10.5ft. lbs. @ 3000 RPM
Ignition Type: Electronic
Dimensions (L x W x H): 12.75 x 15.25 x 14.2 in.
Starting Type: Recoil Pull Start
Fuel Tank Capacity: 1.05 Gal.
Dry Engine Weight: 39lbs.
Shaft Type: Keyed - Straight
Shaft Diameter: 3/4" Diameter, 3/16" Keyway
Shaft Length: 2-7/16"
Shaft I.D. Thread Size: 5/16"-24 Drilled and Tapped
Bolt Pattern: 4 Bolt
Oil System: Splash
Reduction Type: None
Engine Cooling Type: Forced Air Cooling
Features
3 Year Commercial Warranty
Cast Iron Sleeve
Recoil Pull Start
