K & M Krushers Legs Set & Hardware

This is for the Leg set only. No Crusher is included.

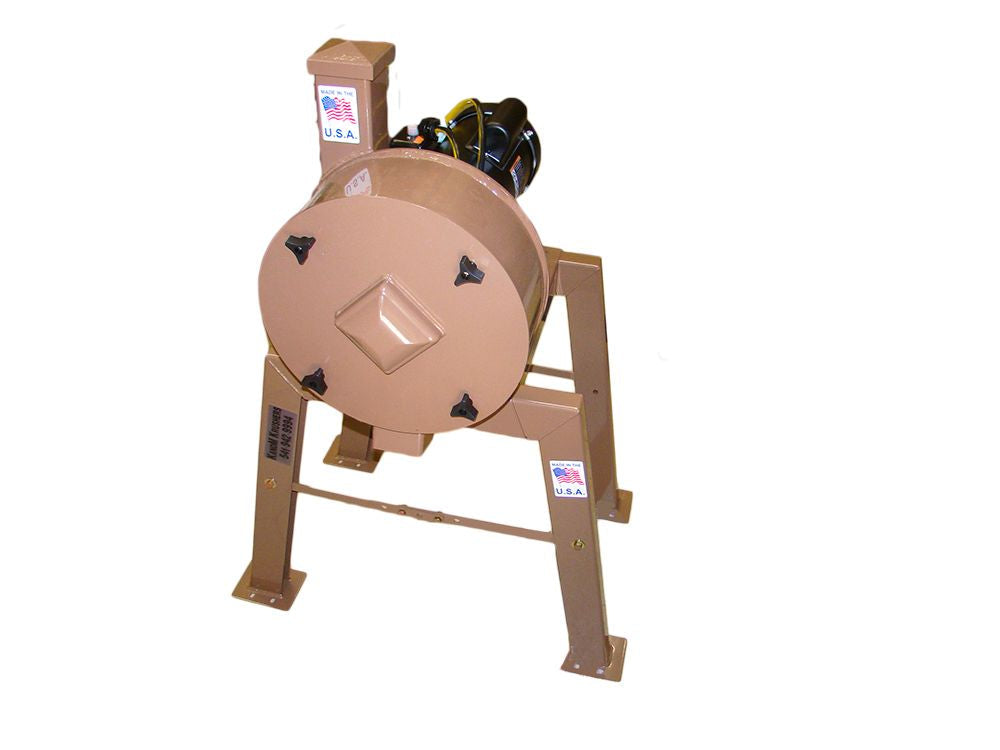

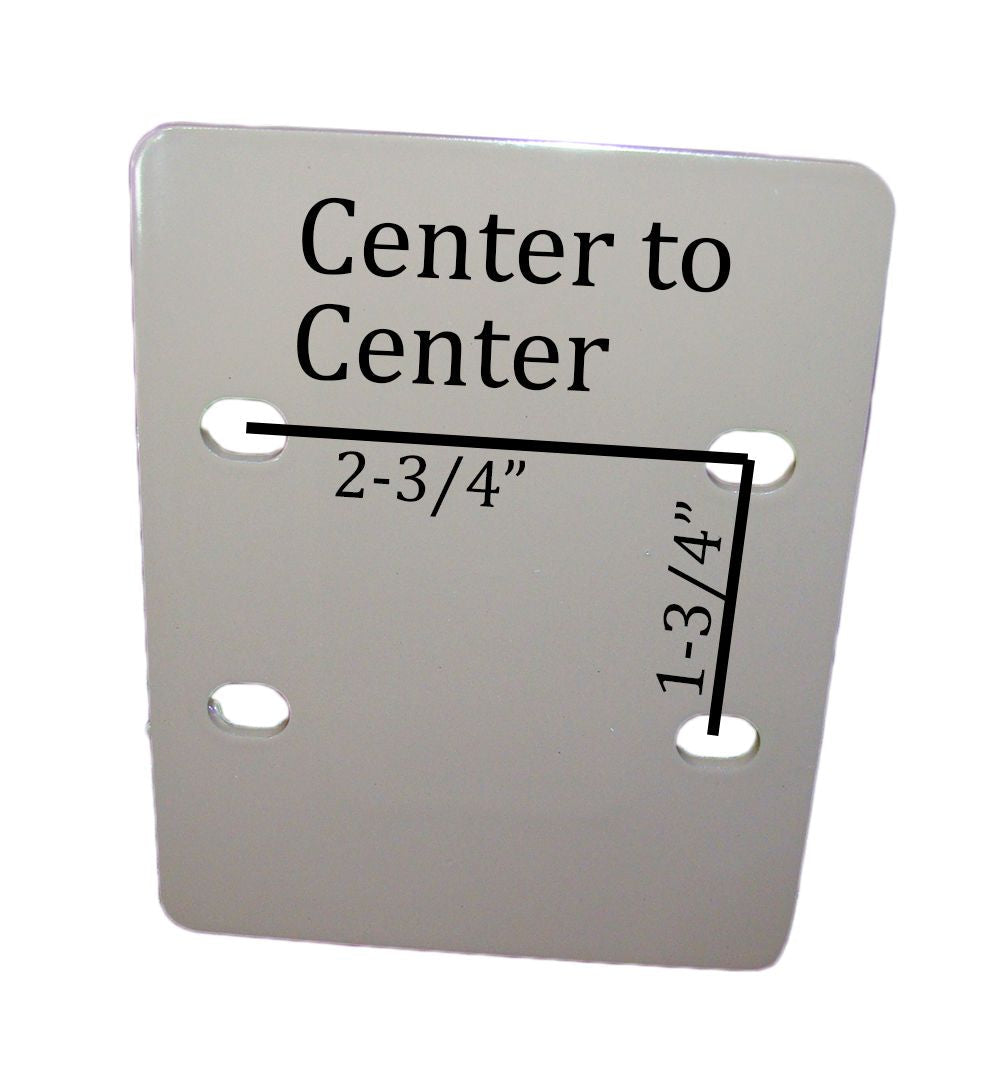

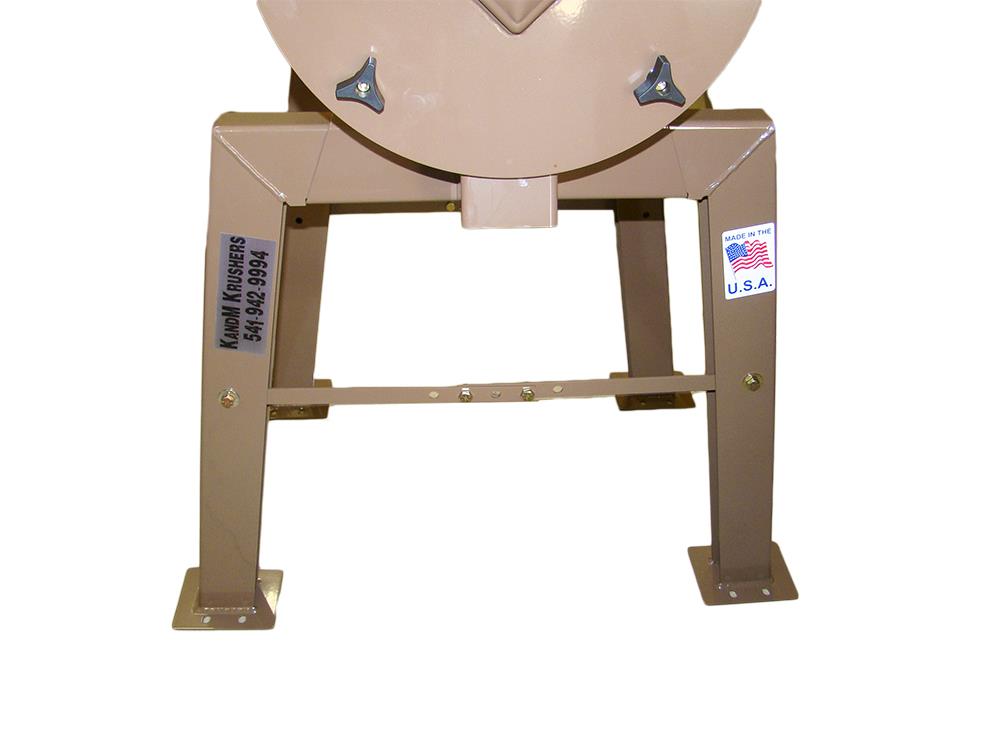

This set of Legs for your K&M Krusher. This set includes 4 legs, 4 cross member brackets and all the Nuts-Bolts-Washers needed. These are made here in Oregon just like our crushers. These legs will fit all of the K&M Krushers. This set has been designed to fit our 11" Crusher & our 14" Crusher with the cross members having 4 holes in the center so with either size machine will have 2 holes lined up for the 2 nuts & Bolts (Provided). All 4 legs & Brackets are identical so assembly is a "No Brainer" This set of legs will raise your crusher 21-1/4" off the floor. The legs are 24" tall but remember these slide into your crusher frame. We have also cut holes in the bottom plate so you can either bolt it to the cement floor or put locking casters on them. The hole pattern is Center to Center 2-3/4" X 1-3/4" Laser cut slightly oblong. (See Photos) This pattern fits most of the 3-5" Casters out there. The way you assemble these legs is simple: support the crusher up about 24" and slide in the 4 legs all the way then sit the crusher down. Next is putting the cross member supports together to lock the legs in. The brackets end with one hole attaches to the leg. Either side works as all 4 legs have holes on both sides. (We suggest the holes on the outer sides of the legs) Now pull the 2 brackets up together to meet in the middle of the legs and insert 2 Nuts & bolts. Repeat this on the other side and then tighten up all the nuts to the bolts and you are ready to go. (After the first set up no need to remove the brackets from the legs as they fit inside for storage)

NOTE; These legs will fit all of the K&M Krushers and might work on other machines from Jaw crushers to other manufactures crushers. The legs at the insertion spot or top is 2-5/8" tall and 1-5/8" wide. It's designed to fit our frame that measures 2"x3" rounded steel tubing.
