K & M Crushers - Carrol Stream 6.5HP Gas Motor - OEM 11" & 14" Crushers

Specifications:

Make:  Made to Carroll Stream Motor Co. Quality Standards by Lifan

Model:  CS168-6.5HP Recoil

Type:  Small Engine

Fuel:  Gas Unleaded 86 Octane or Higher

Engine Type:  4 Stroke OHV SIngle Cylinder

Bore/Stroke: 68 x 54

Displacement:  196 cc

Compression Ratio: 8:5:1

Max Power:  6.5 HP @ 3600 RPM

Max Torque:  8.11 ft. lbs. @ 2500 RPM

Ignition Type:  TCI No Contact Transistorized

Dimensions (L x W x H):  12.5 x 15 x 14.25 in.

Starting Type:  Recoil Pull Start

Fuel Tank Capacity:  0.95 Gal.

Dry Engine Weight:  33 lbs.

Shaft Type:  Keyed - Straight

Shaft Diameter:  3/4" Diameter, 3/16" Keyway

Shaft Length:  2-5/8" Total, 2-5/16" Usable

Shaft I.D. Thread Size:  5/16"-24 Drilled and Tapped

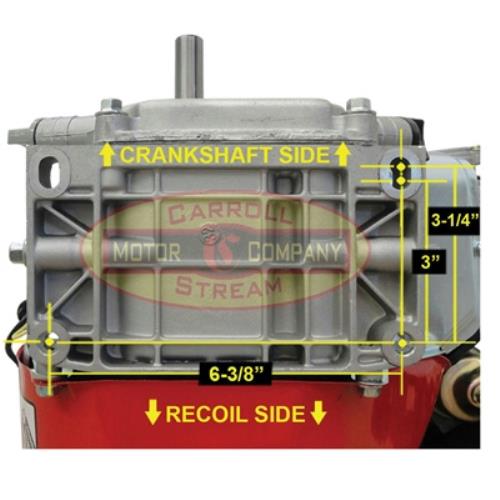

Bolt Pattern:  4 Bolt

Oil System:Splash

Reduction Type:  None

Engine Cooling Type:  Forced Air Cooling

Features:  Cast Iron Sleeve

4 Stroke OHV Small Engine

Recoil Pull Start

This motor works for our 11" or 14" Gas Crushers
